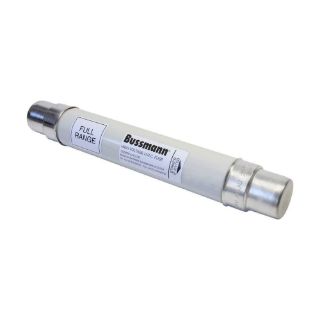

Picture of 12FDLSJ6.3 BSF
Actual Product May Vary From Image

12FDLSJ6.3 BSF

Bussmann 12FDLSJ6.3 FDLSJ Type F Current Limiting Medium Voltage Full Range Fuse Link, 6.3 A, 12 kV, Cartridge Body
Manufacturer: Bussmann
Manufacturer part number: 12FDLSJ6.3
Availability: Expected Leadtime 74 days
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...
Price on Request

Product Details

Brand Name

Bussmann

Type

Type F Current Limiting Medium Voltage

Description

Eaton's Bussmann medium voltage DIN full range and back-up fuses offer an excellent transformer protection. They are available with or without striker. They comply to the dimensional standard DIN 43625, VDE 0670 and IEC 60282-1. They are suitable for indoor and outdoor use.
Bussmann Full Range Fuse Link, Type F Current Limiting Medium Voltage, Series: FDLSJ, Non-Indicating, 6.3 A, 12 kV, Bolted-On Terminal, Cartridge Body, 51 mm Dia x 292 mm L Body

Application

Primary Side Transformer Protection, Oil Filled Fuse Switch Combination Unit, Fuse Bases Without Instantaneous Striker Tripping and Fuse Switches

Standards

IEC 60282-1 | DIN 43625 | VDE 0670 Part 4 | VDE 0670 part 402

Features

  • Cool running, low watts loss and power dissipation thanks to the M-effect ensuring high levels of substation utilization
  • Silver elements ensuring high conductivity and low power (revenue) loss
  • 100% X-ray, all our medium voltage fuse links are X-rayed ensuring the highest possible standards are maintained
  • Full range MV fuse links can interrupt any current below the rated breaking capacity

Specifications

Amperage Rating:6.3 A
Body Size:51 mm Dia x 292 mm L
Body Type:Cartridge
Country of Origin:GB
Indicating/Non-Indicating:Non-Indicating
Series:FDLSJ
Terminal Type:Bolted-On
Voltage Rating:12 kV
