12NBC1822YZP RBC

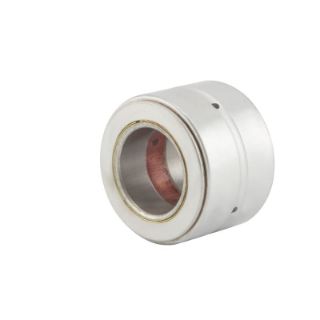

RBC® 12NBC1822YZP NBC Airframe Bearing, Needle Roller Bearing, 3/4 in Dia Bore, 1-3/8 in OD, 1-1/8 in W, 23900 lb Load
Manufacturer part number: 12NBC1822YZP
Availability: Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$422.10

Product Details

Brand Name

RBC®

Description

RBC® Airframe Bearing, Series: NBC, Needle Roller Bearing, 3/4 in Bore Dia, 1 Row, 1-3/8 in Outside Dia, 1-1/8 in W, 23900 lb, 52100 Steel Bearing, 0 to 250 deg F, Cadmium

Application

For use in industrial applications that necessitate the most stringent tolerances

Standards

ABMA | ASPR | CAS | DFAR | FAR Standards | NASC | SAE AS24461 | US Military Specification AS39901

Features

  • Designed for use as track rollers to withstand heavy static loads or moderate loads under oscillation or slow rotation
  • Must be mounted in supporting housing
  • This bearing is not intended for use in any aerospace application
  • Lubrication groove (recessed) in bore and hole in inner race
  • Lubrication groove (recessed) in OD and hole in outer race
  • Exposed surfaces, as mounted, cadmium plated
  • 23900 lb dynamic/23900 lb static

Includes

Single Row Needle Rollers and (2) Retaining Washers

Specifications

Bearing Material:52100 Steel
Bearing Type:Needle Roller
Bore Diameter:3/4 in
Country of Origin:US
Finish:Cadmium
Load Capacity:23900 lb
Number of Rows:1
Outside Diameter:1-3/8 in
Series:NBC
Temperature Rating:0 to 250 deg F
Width:1-1/8 in
