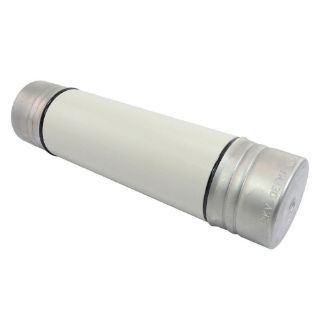

Actual Product May Vary From Image

12OEFMA6.3 BSF

Name: 12OEFMA6.3 BSF
Brand: Bussmann
SKU: 12OEFMA6.3 BSF
Availability: OutOfStock

Bussmann 12OEFMA6.3 OEF British Standard Medium Voltage Oiltight IEC Fuse With Powerful Pyrotechnic Striker Pin, 6.3 A, 12 kV, 40 kA Interrupt, Class: Back-Up

Manufacturer: Bussmann

Manufacturer part number: 12OEFMA6.3

Availability: Expected Leadtime 53 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

British Standard Medium Voltage Oiltight

Description

Eaton's Bussmann series oil tight medium voltage fuses are designed for use in oil filled switchgear. They are suitable for primary side transformer protection and oil filled switch combination unit. This type of fuses was pioneered in the UK. Eaton has been in continuous manufacture for almost 40 years being by far one of the most widely used device of its kind in the world. Over 1 million of Eaton's Bussmann series oil tight medium voltage fuses have been put in service.

Bussmann IEC Fuse, British Standard Medium Voltage Oiltight, Series: OEF, Indicating/Non-Indicating: Indicating, 6.3 A, 12 kV, 40 kA Interrupt, Class: Back-Up, 63.5 mm Dia x 254 mm L Body Size

Application

Oil Filled Distribution Switchgear, Medium Voltage BS Designed Equipment

Standards

IEC 60282-1 | BS 2692-1

Features

Physically sized for replacement of British standard fuse links
BS 2692-1 medium voltage fuses for use on the primary circuit of 3-phase 50 Hz transformers in oil field switchgear

Specifications

Amperage Rating:	6.3 A
Body Size:	63.5 mm Dia x 254 mm L
Class:	Back-Up
Indicating/Non-Indicating:	Indicating
Interrupt Rating:	40 kA
Series:	OEF
Voltage Rating:	12 kV
