12OEFMA63 BSF

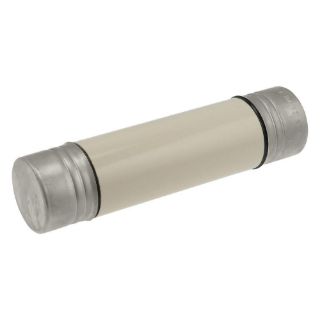

Bussmann 12OEFMA63 OEF British Standard Medium Voltage Oiltight IEC Fuse With Powerful Pyrotechnic Striker Pin, 63 A, 12 kV, 40 kA Interrupt, Class: Back-Up, Cartridge Body
Manufacturer: Bussmann
Manufacturer part number: 12OEFMA63
Availability: Expected Leadtime 28 days
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...
Price on Request

Product Details

Brand Name

Bussmann

Type

British Standard Medium Voltage Oiltight

Description

Eaton's Bussmann series oil tight medium voltage fuses are designed for use in oil filled switchgear. They are suitable for primary side transformer protection and oil filled switch combination unit. This type of fuses was pioneered in the UK. Eaton has been in continuous manufacture for almost 40 years being by far one of the most widely used device of its kind in the world. Over 1 million of Eaton's Bussmann series oil tight medium voltage fuses have been put in service.
Bussmann IEC Fuse, British Standard Medium Voltage Oiltight, Series: OEF, Indicating/Non-Indicating: Indicating, 63 A, 12 kV, 40 kA Interrupt, Class: Back-Up, Body Type: Cartridge, 63.5 mm Dia x 254 mm L Body Size

Application

Oil Filled Distribution Switchgear, Medium Voltage BS Designed Equipment

Standards

IEC 60282-1 | BS 2692-1

Features

  • Physically sized for replacement of British standard fuse links
  • BS 2692-1 medium voltage fuses for use on the primary circuit of 3-phase 50 Hz transformers in oil field switchgear

Specifications

Amperage Rating:63 A
Body Size:63.5 mm Dia x 254 mm L
Body Type:Cartridge
Class:Back-Up
Country of Origin:IN
Indicating/Non-Indicating:Indicating
Interrupt Rating:40 kA
Series:OEF
Voltage Rating:12 kV
