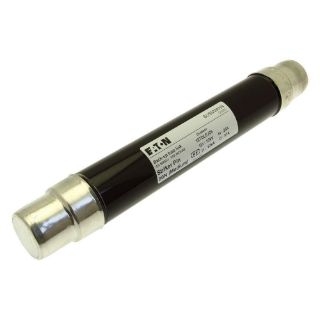

Actual Product May Vary From Image

12TDLEJ25 BSF

Name: 12TDLEJ25 BSF
Brand: Bussmann
SKU: 12TDLEJ25 BSF
Availability: OutOfStock

Bussmann 12TDLEJ25 DIN Dimensioned IEC Medium Voltage DIN Fuse With Striker, 25 A, 12 kV, 63 kAIC Interrupt, Class: Back-Up

Manufacturer: Bussmann

Manufacturer part number: 12TDLEJ25

Availability: Expected Leadtime 30 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

DIN Dimensioned IEC Medium Voltage DIN

Description

Eaton's Bussmann medium voltage DIN full range and back-up fuses offer an excellent transformer protection. They are available with or without striker. They comply to the dimensional standard DIN 43625, VDE 0670 and IEC 60282-1. They are suitable for indoor and outdoor use.

Bussmann Fuse, DIN Dimensioned IEC Medium Voltage DIN, Indicating/Non-Indicating: Indicating, 25 A, 12 kV, 63 kAIC Interrupt, Class: Back-Up, Bolt-On Mount, Brown, 51 mm Dia x 292 mm L Body Size

Application

Utility - Substations, Utility Transmission and Distribution, For medium voltage IEC designed equipment, Indoor or outdoor use Applications

Standards

RoHS Compliant | UL Listed | VDE Certified

Features

For back-up, transformer protection, indoor or outdoor use
Single barrel

Specifications

Amperage Rating:	25 A
Body Size:	51 mm Dia x 292 mm L
Class:	Back-Up
Color:	Brown
Indicating/Non-Indicating:	Indicating
Interrupt Rating:	63 kAIC
Mounting Type:	Bolt-On
Voltage Rating:	12 kV
