Actual Product May Vary From Image

12TDLEJ6.3 BSF

Name: 12TDLEJ6.3 BSF
Brand: Bussmann
SKU: 12TDLEJ6.3 BSF
Availability: OutOfStock

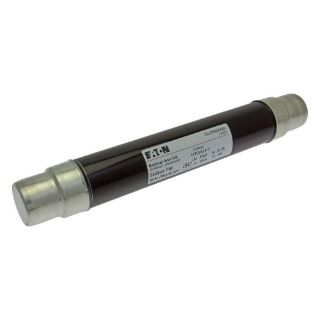

Bussmann 12TDLEJ6.3 Type T Fuse Link With Striker, 12 kV, 6.3 A, For Use With Medium Voltage Current Limiting Fused Circuit

Manufacturer: Bussmann

Manufacturer part number: 12TDLEJ6.3

Availability: Expected Leadtime 30 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

Type T

Description

Eaton's Bussmann medium voltage DIN full range and back-up fuses offer an excellent transformer protection. They are available with or without striker. They comply to the dimensional standard DIN 43625, VDE 0670 and IEC 60282-1. They are suitable for indoor and outdoor use.

Bussmann Fuse Link, Type T, Series: TDLEJ, 12 kV, 6.3 A, Rated Breaking Capacity: 63 kA, For Use With: Medium Voltage Current Limiting Fused Circuit, Brown, 2 in Dia x 11-1/2 in L

Application

Substations, Medium Voltage IEC Designed Equipment, Primary Side Transformer Protection, Fuse Switch Combination Unit, Fuse Bases and Fuse Switches, Utility Transmission and Distribution Applications

Standards

DIN 43625 | IEC 60282-1 | VDE 0670

Features

DIN dimensioned for retrofitting in existing hardware
Open fuse indicator for ease in troubleshooting
Designed for use in IEC equipment

Specifications

Amperage Rating:	6.3 A
Color:	Brown
Dimensions:	2 in Dia x 11-1/2 in L
Rated Breaking Capacity:	63 kA
Series:	TDLEJ
Suitable For Use With:	Medium Voltage Current Limiting Fused Circuit
Voltage Rating:	12 kV
