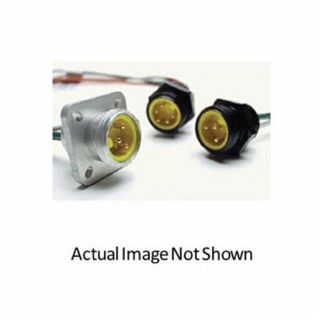

Actual Product May Vary From Image

1300130247 WOO

Name: 1300130247 WOO
Brand: Molex/Woodhead
SKU: 1300130247 WOO
Availability: OutOfStock

Brad® Mini-Change® Woodhead® 1R3007A20A120 130013 3-Pole A-Size Single Ended Receptacle, 600 VAC/VDC, 13 A, 90 deg Male x 16 AWG Lead Slot End

Manufacturer: Molex/Woodhead

Manufacturer part number: 1R3007A20A120

Availability: Expected Leadtime 7 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Brad®

Type

3-Pole A-Size Single Ended

Description

Brad® Mini-Change® Woodhead® Receptacle, 3-Pole A-Size Single Ended, Series: 130013, 600 VAC/VDC, 13 A, 90 deg Male x 16 AWG Lead Slot End, NEMA 6 NEMA Rating, Industrial Grade, Die Cast Zinc, 0.305 m L Dimensions

Standards

CSA File No. LR6837 | UL 1015 File No. E152210

Features

Patented Quad-Beam™ contact provides low resistance
Brad® Mini-Change® connectors are the standard by which all miniature connectors are measured
With Mini-Change® connectors, industrial device wiring is easier to install and maintain
These connectors provided the first quick-connect alternative to hard-wiring
Made of die cast zinc with black epoxy
External thread coupling, single keyway
To ensure a consistent, low resistance connection, the patented Quad-Beam™ female contact is used
An anti-vibration feature prevents the coupler from loosening, even under extreme conditions

Specifications

Amperage Rating:	13 A
Country of Origin:	MX
Dimensions:	0.305 m L
Grade:	Industrial
Material:	Die Cast Zinc
NEMA Rating:	NEMA 6
Series:	130013
Slot End Style:	90 deg Male x 16 AWG Lead
Voltage Rating:	600 VAC/VDC
