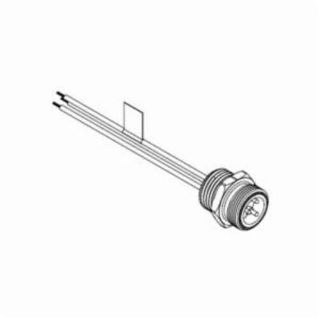

Actual Product May Vary From Image

1300130353 WOO

Name: 1300130353 WOO
Brand: Molex/Woodhead
SKU: 1300130353 WOO
Availability: OutOfStock

Woodhead® Brad® Mini-Change® 130013-0353 A-Size Single Ended Receptacle, 600 VAC/VDC, 10 A

Manufacturer: Molex/Woodhead

Manufacturer part number: 130013-0353

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Woodhead®

Type

A-Size Single Ended

Description

Delivering optimum conductivity, Brad® Mini-Change® Connectors from Molex offer the broadest selection of miniature connectors in the industrial market. Brad® Mini-Change® Connectors are the standard by which all miniature connectors are measured. First introduced in 1968, the Mini-Change connector pioneered the market for rugged, sealed connectors in industrial applications. These connectors provided the first quick-connect alternative to hard-wiring.

Woodhead® Brad® Mini-Change® Receptacle, A-Size Single Ended, Series: 130013, 600 VAC/VDC, 10 A, NEMA 6/IP67, Die Cast Zinc, Black/White/Red/Green/Yellow, 12 in L

Application

Commercial and Industrial Light Displays, Float Switches on Commercial Sump Pumps, Fractional Horse Power Motors, Industrial Heaters, Industrial Refrigeration Systems, Limit Switches, Linear Position Transducers and Load Cells

Standards

UL E152210 | UL 1015 | CSA LR6837 | RoHS Compliant

Features

4 poles
Maintains consistent pressure on the male pin to ensure optimum conductivity
High performance, long-lasting plating that maintains low resistance through many mate /unmate cycles
Easier alignment and mating of connector
Provides 100 pounds minimum cable strain relief, radiates stress in side-loaded conditions
Single keyway
Straight male 1/2-14 NPT mounting thread
Black epoxy coated
16 AWG PVC UL 1015 U.S. color code 2P-12P
-20 to 105 deg C operating temperature
External thread coupling

Specifications

Amperage Rating:	10 A
Color:	Black/White/Red/Green/Yellow
Dimensions:	12 in L
Material:	Die Cast Zinc
NEMA Rating:	NEMA 6/IP67
Series:	130013
Voltage Rating:	600 VAC/VDC
