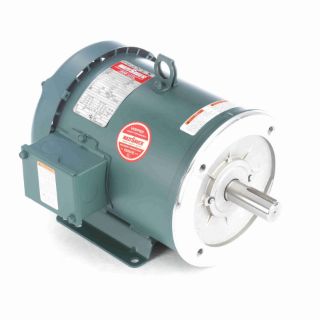

Actual Product May Vary From Image

131504.00 LEE

Name: 131504.00 LEE
Brand: Leeson Electric
SKU: 131504.00 LEE
Availability: OutOfStock

LEESON® 131504.00 Continuous Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 3 hp, 208 to 230/460 VAC, 60 Hz, 3 Phase, 182TC Frame, 1800 rpm Speed, Foot Rigid Mount

Manufacturer: Leeson Electric

Manufacturer part number: 131504.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

LEESON®

Type

Continuous Duty

Description

LEESON® AC Motor, Continuous Duty, 3 hp, 208 to 230/460 VAC, 7.8 A, 60 Hz, 3 ph, 1800 rpm, 1 Speed, Totally Enclosed Fan Cooled, 182TC Frame, 1-1/8 in Dia Shaft, Reversible, Service Factor: 1.149, Ball Bearing, Foot Rigid Mount, Insulation Class: Class F, Rolled Steel, 14.96 in L x 10.86 in W x 10.36 in H

Standards

CSA certified | UL Recognized

Features

Premium efficient ratings
Inverter-rated, continuous duty
Class F insulation system - 140 frame and higher
Shielded ball bearings for direct coupled applications contact your local sales office for belted load applications
Dynamically balanced rotors
Torques exceed NEMA performance standards

Specifications

Amperage Rating:	7.8 A
Bearing Type:	Ball
Country of Origin:	MX
Dimensions:	14.96 in L x 10.86 in W x 10.36 in H
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	182TC
Frequency Rating:	60 Hz
Horsepower:	3 hp
Insulation Class:	Class F
Material:	Rolled Steel
Mounting Type:	Foot Rigid
Number of Speeds:	1
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.149
Shaft Size:	1-1/8 in Dia
Speed:	1800 rpm
Voltage Rating:	208 to 230/460 VAC
