Actual Product May Vary From Image

131553.00 LEE

Name: 131553.00 LEE
Brand: Leeson Electric
SKU: 131553.00 LEE
Availability: OutOfStock

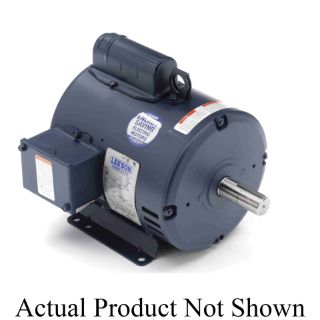

LEESON® 131553.00 4-Pole Continuous Duty AC Motor, DP Enclosure, 2 hp, 220 VAC, 50 Hz, 1 ph Phase, 182T Frame, 1440 rpm Speed, Rigid Base Mount

Manufacturer: Leeson Electric

Manufacturer part number: 131553.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

LEESON®

Type

4-Pole Continuous Duty

Description

LEESON® AC Motor, 4-Pole Continuous Duty, Application Type: Compressor Motors, Fan and Blower Motors, General Purpose AC Motors, Special Features: Capacitor Start Motors, 2 hp, 220 VAC, 11.8 A, 50 Hz, 1 ph, 1440 rpm, 1 Speed, DP, 182T Frame, 1.13 in Dia x 2.75 in L Shaft, Selective CCW, Service Factor: 1.15, Ball Bearing, 7.2 ft-lb, Rigid Base Mount, 40 deg C, Insulation Class: Class F, Rolled Steel, 10:1 Variable Torque Speed, 13.69 in L x 11.31 in H

Application

Pumps, Conveyors, Machine Tools, Commercial and Industrial Applications

Standards

CE/CSA Certified | UL Listed

Features

Capacitor Start Motors

Specifications

Amperage Rating:	11.8 A
Application Type:	Compressor Motors, Fan and Blower Motors, General Purpose AC Motors
Bearing Type:	Ball
Country of Origin:	MX
Dimensions:	13.69 in L x 11.31 in H
Enclosure Type:	DP
Frame:	182T
Frequency Rating:	50 Hz
Horsepower:	2 hp
Insulation Class:	Class F
Material:	Rolled Steel
Mounting Type:	Rigid Base
Number of Speeds:	1
Phase:	1 ph
Rotation:	Selective CCW
Service Factor:	1.15
Shaft Size:	1.13 in Dia x 2.75 in L
Speed:	1440 rpm
Temperature Rating:	40 deg C
Torque Rating:	7.2 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	220 VAC
