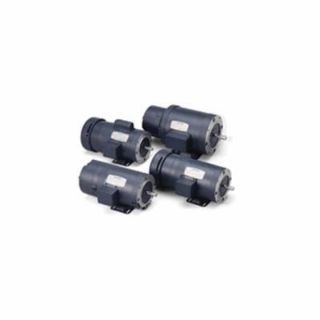

Actual Product May Vary From Image

131610.00 LEE

Name: 131610.00 LEE
Brand: Leeson Electric
SKU: 131610.00 LEE
Availability: OutOfStock

LEESON® 131610.00 Type TF Continuous Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 3 hp, 208 to 230/460 VAC, 60 Hz, 182TC Frame, 1800 rpm Speed, Round Mount

Manufacturer: Leeson Electric

Manufacturer part number: 131610.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

LEESON®

Type

Type TF Continuous Duty

Description

LEESON® AC Motor, Type TF Continuous Duty, Brake Motors, Hoist Motors Application, 3 hp, 208 to 230/460 VAC, 9.2 to 9/4.5 A, 60 Hz Frequency, 1800 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 182TC Frame, 1-1/8 in Dia Shaft, Reversible Rotation, 1.149 Service Factor, Ball Bearing, Round Mounting, 40 deg C, Insulation Class: Class F, Steel, 18.73 in L Dimensions

Application

For quick response stopping and holding application which may include conveyors, hoists and packaging equipment

Standards

CE Marked | CSA Certified | UL Listed

Features

Fail-safe position stop and holding brakes
Load stops automatically when power is turned OFF
Dual voltage brake coils

Specifications

Amperage Rating:	9.2 to 9/4.5 A
Application Type:	Brake Motors, Hoist Motors
Bearing Type:	Ball
Dimensions:	18.73 in L
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	182TC
Frequency Rating:	60 Hz
Horsepower:	3 hp
Insulation Class:	Class F
Material:	Steel
Mounting Type:	Round
Number of Speeds:	1
Rotation:	Reversible
Service Factor:	1.149
Shaft Size:	1-1/8 in Dia
Speed:	1800 rpm
Temperature Rating:	40 deg C
Voltage Rating:	208 to 230/460 VAC

Resources
