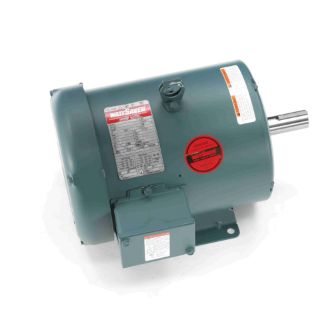

Actual Product May Vary From Image

131980.00 LEE

Name: 131980.00 LEE
Brand: Leeson Electric
SKU: 131980.00 LEE
Price: 972.57 USD
Availability: OutOfStock

LEESON® Ultimate e® 131980.00 6-Pole Continuous Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 1.5 hp, 230/460 VAC, 60 Hz, 3 ph Phase, 182T Frame, 1170 rpm Speed, C-Face/Rigid Base Mount

Manufacturer: Leeson Electric

Manufacturer part number: 131980.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$972.57

Qty:

Product Details

Brand Name

LEESON®

Type

6-Pole Continuous Duty

Description

LEESON® Ultimate e® AC Motor, 6-Pole Continuous Duty, General Purpose AC Motors Application, 1.5 hp, 230/460 VAC, 6/3 A, 60 Hz Frequency, 3 ph ph, 1170 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 182T Frame, 1.13 in Dia x 2.75 in L Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 6.71 ft-lb Torque, C-Face/Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Rolled Steel, 10:1 Variable Torque Speed, 14.46 in L x 10.37 in H Dimensions

Application

Commercial and Industrial Applications

Standards

CE/CSA Certified | UL Listed

Features

Standard, epact and premium efficient ratings
Inverter rated
Class F insulation system 140 frame and higher
Shielded ball bearings for direct coupled applications
Dynamically balanced rotors
Torques exceed NEMA performance standards

Specifications

Amperage Rating:	6/3 A
Application Type:	General Purpose AC Motors
Bearing Type:	Ball
Country of Origin:	MX
Dimensions:	14.46 in L x 10.37 in H
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	182T
Frequency Rating:	60 Hz
Horsepower:	1.5 hp
Insulation Class:	Class F
Material:	Rolled Steel
Mounting Type:	C-Face/Rigid Base
Number of Speeds:	1
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.15
Shaft Size:	1.13 in Dia x 2.75 in L
Speed:	1170 rpm
Temperature Rating:	40 deg C
Torque Rating:	6.71 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	230/460 VAC
