Actual Product May Vary From Image

131987.00 LEE

Name: 131987.00 LEE
Brand: Leeson Electric
SKU: 131987.00 LEE
Availability: OutOfStock

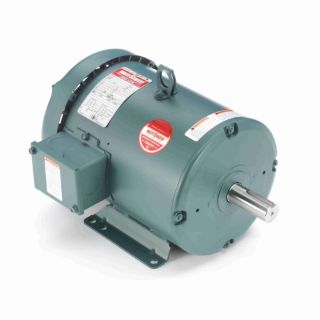

LEESON® 131987.00 Type TF Continuous Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 5 hp, 208 to 230/460 VAC, 50/60 Hz, 180 Frame, 3515/2910 rpm Speed, Rigid Mount

Manufacturer: Leeson Electric

Manufacturer part number: 131987.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

LEESON®

Type

Type TF Continuous Duty

Description

LEESON® AC Motor, Type TF Continuous Duty, Compressor Motors, Fan & Blower Motors Application, 2-Pole, A NEMA Design Special Features, 5 hp, 208 to 230/460 VAC, 15 to 14/7/16/8 A, 50/60 Hz Frequency, 3515/2910 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 180 Frame, 1-1/8 in Dia Shaft, Reversible Rotation, 1.25 Service Factor, Ball Bearing, Rigid Mounting, 40 deg C, Insulation Class: Class F, Rolled Steel, 16.46 in L Dimensions

Application

Pumps, Compressors, Fans, Blowers, Conveyors, Machine Tools and Other Industrial Applications

Standards

CSA Certified | UL Listed

Features

2-Pole, A NEMA Design

Specifications

Amperage Rating:	15 to 14/7/16/8 A
Application Type:	Compressor Motors, Fan & Blower Motors
Bearing Type:	Ball
Country of Origin:	MX
Dimensions:	16.46 in L
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	180
Frequency Rating:	50/60 Hz
Horsepower:	5 hp
Insulation Class:	Class F
Material:	Rolled Steel
Mounting Type:	Rigid
Number of Speeds:	1
Rotation:	Reversible
Service Factor:	1.25
Shaft Size:	1-1/8 in Dia
Speed:	3515/2910 rpm
Temperature Rating:	40 deg C
Voltage Rating:	208 to 230/460 VAC
