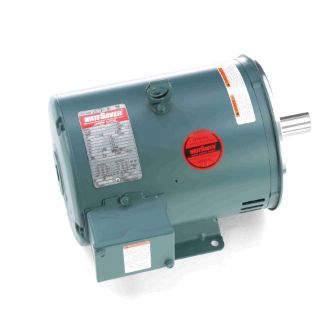

Actual Product May Vary From Image

132082.00 LEE

Name: 132082.00 LEE
Brand: Leeson Electric
SKU: 132082.00 LEE
Availability: OutOfStock

LEESON® Ultimate e® 132082.00 4-Pole Continuous Duty AC Motor, DP Enclosure, 5 hp, 230/460 VAC, 60 Hz, 3 ph Phase, 184TC Frame, 1755 rpm Speed, C-Face/Rigid Base Mount

Manufacturer: Leeson Electric

Manufacturer part number: 132082.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

LEESON®

Type

4-Pole Continuous Duty

Description

LEESON® Ultimate e® AC Motor, 4-Pole Continuous Duty, Compressor Motors, Fan and Blower Motors, General Purpose AC Motors Application, 5 hp, 230/460 VAC, 12.6/6.3 A, 60 Hz Frequency, 3 ph ph, 1755 rpm Speed, 1 Speed, DP Enclosure, 184TC Frame, 1.13 in Dia x 2.75 in L Shaft, Reversible Rotation, 1.25 Service Factor, Ball Bearing, 14.95 ft-lb Torque, C-Face/Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Rolled Steel, 10:1 Variable Torque Speed, 14.2 in L x 10.36 in H Dimensions

Application

Pumps, Commercial and Industrial Applications

Standards

CE/CSA Certified | UL Listed

Features

Premium efficient ratings
Inverter rated
Shielded ball bearings for direct coupled applications
WattSaver® e premium efficient motors
Ultimate® premium efficient motors
Squirrel cage induction run

Specifications

Amperage Rating:	12.6/6.3 A
Application Type:	Compressor Motors, Fan and Blower Motors, General Purpose AC Motors
Bearing Type:	Ball
Country of Origin:	MX
Dimensions:	14.2 in L x 10.36 in H
Enclosure Type:	DP
Frame:	184TC
Frequency Rating:	60 Hz
Horsepower:	5 hp
Insulation Class:	Class F
Material:	Rolled Steel
Mounting Type:	C-Face/Rigid Base
Number of Speeds:	1
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.25
Shaft Size:	1.13 in Dia x 2.75 in L
Speed:	1755 rpm
Temperature Rating:	40 deg C
Torque Rating:	14.95 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	230/460 VAC
