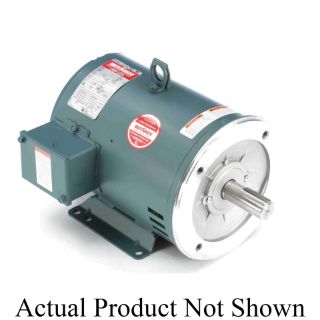

Actual Product May Vary From Image

132083.00 LEE

Name: 132083.00 LEE
Brand: Leeson Electric
SKU: 132083.00 LEE
Availability: OutOfStock

LEESON® 132083.00 2-Pole Continuous Duty AC Motor, DP Enclosure, 3 hp, 115/208 to 230 VAC, 60 Hz, 1 ph Phase, 182TC Frame, 3500 rpm Speed, C-Face/Rigid Base Mount

Manufacturer: Leeson Electric

Manufacturer part number: 132083.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

LEESON®

Type

2-Pole Continuous Duty

Description

LEESON® AC Motor, 2-Pole Continuous Duty, General Purpose AC Motors Application, Capacitor Start Motors Special Features, 3 hp, 115/208 to 230 VAC, 28/15.2 to 14 A, 60 Hz Frequency, 1 ph ph, 3500 rpm Speed, 1 Speed, DP Enclosure, 182TC Frame, 1.13 in Dia x 2.75 in L Shaft, Selective CCW Rotation, 1.15 Service Factor, Ball Bearing, 4.5 ft-lb Torque, C-Face/Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Rolled Steel, 10:1 Variable Torque Speed, 14.2 in L x 11.31 in H Dimensions

Application

Commercial and Industrial Applications

Standards

CSA Certified | UL Listed

Features

Capacitor Start Motors

Specifications

Amperage Rating:	28/15.2 to 14 A
Application Type:	General Purpose AC Motors
Bearing Type:	Ball
Country of Origin:	MX
Dimensions:	14.2 in L x 11.31 in H
Enclosure Type:	DP
Frame:	182TC
Frequency Rating:	60 Hz
Horsepower:	3 hp
Insulation Class:	Class F
Material:	Rolled Steel
Mounting Type:	C-Face/Rigid Base
Number of Speeds:	1
Phase:	1 ph
Rotation:	Selective CCW
Service Factor:	1.15
Shaft Size:	1.13 in Dia x 2.75 in L
Speed:	3500 rpm
Temperature Rating:	40 deg C
Torque Rating:	4.5 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	115/208 to 230 VAC
