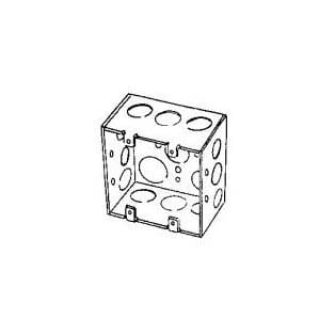

Actual Product May Vary From Image

132AP12 NER

Name: 132AP12 NER
Brand: Appleton
SKU: 132AP12 NER
Availability: OutOfStock

Appleton® 132AP1/2 Square Corner Welded Switch Box With Knockout, Steel, 30.3 cu-in Capacity, 2 Gangs, 17 Knockouts, 4 in H x 4 in W x 2-1/8 in D

Manufacturer: Appleton

Manufacturer part number: 132AP1/2

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Appleton®

Type

Square Corner Welded

Description

Appleton™ and O-Z/Gedney™ metallic switch boxes are widely recognized for quality, selection and ease of installation. They may be used as a junction box or a device box for switches, receptacles, GFCIs, etc. Manufactured of durable materials with consistent construction means easy installation, making all the difference in the speed and final quality of any wiring job.

Appleton® Switch Box, Square Corner Welded, 2 Gangs, 17 Knockouts, 1/2 in Knockout, Knockout Cable Entry Size, 30.3 cu-in, Steel, Pre-Galvanized, 4 in H x 4 in W x 2-1/8 in D

Application

Used in fire rated assemblies

Standards

UL 514A | UL 514B | UL 514D File No. E2527 | NEMA FB-1 | OS-1 Compliant

Features

Single and double gang metallic outlet and switch boxes are acceptable for use in two hour fire rated walls
Boxes with concentric or eccentric knockouts are suitable for bonding without any additional bonding means where used in circuits above or below 250 VAC
All concentric or eccentric knockouts are 1/2 to 3/4 in combinations
(6) 1/2 in side, (6) 1/2 in end, (5) 1/2 in bottom knockouts

Specifications

Cable Entry Size:	Knockout
Capacity:	30.3 cu-in
Country of Origin:	US
Dimensions:	4 in H x 4 in W x 2-1/8 in D
Finish:	Pre-Galvanized
Knockout Size:	1/2 in
Material:	Steel
Number of Gangs:	2
Number of Knockouts:	17
