133Q56H20 010 MOR

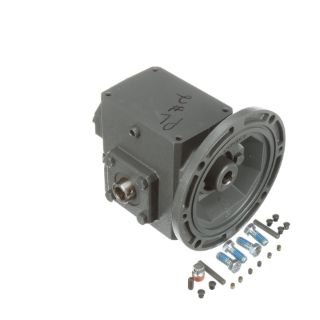

Morse® Raider® Plus XB1115 Single Reduction Standard Worm Gear Reducer, C-Face Quilled Input, Hollow Output, 1 hp, 20:1 Gear Ratio, 87.5 rpm Maximum Output, 19.84 in-lb Input/87.5 in-lb Output Torque Rating
Manufacturer: Regal Rexnord
Manufacturer part number: XB1115
Availability: Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$1,254.74

Product Details

Brand Name

Morse®

Type

Single Reduction Standard

Description

Raider® Plus worm gear reducers represent the most flexible worm gear product in the power transmission solutions portfolio. With a large variety of add-on accessories, the Raider® Plus line of worm gear reducers is a problem solver. Four unit styles form the basis of this vast product offering. These are the universal style ("U" style, shaft input) with an output shaft and the C-face style ("Q" style, input quill) with an output shaft. Both the "U" and "Q" styles are also available with hollow outputs. The Raider® Plus worm gear reducer is designed as an industry interchange. It is dimensionally interchangeable with the major industry competitors.
Morse® Raider® Plus Worm Gear Reducer, Single Reduction Standard, 20:1 Gear Ratio, 1 hp, C-Face Quilled Input, Hollow Output, 5/8 in Dia Input, 5/8 in ID Output, 87.5 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 19.84 in-lb Input/87.5 in-lb Output, 1.33 in Centre Distance, 3/16 x 3/32 in Input/3/16 x 1-1/2 in Output Keyway, 80 % Efficiency, Polyglycol Oil Lubrication, Direct/Floor Mount, Cast Iron, 6.07 in L x 4.75 in W x 4.66 in H

Application

Food Industry, Lumber Industry, Paper Mills, Rubber Industry and Textile Industries

Standards

FDA Approved

Features

  • Rugged cast iron housing provides maximum strength and dependability
  • High lead angle worm is case hardened, ground and polished
  • Large, single row ball bearings on input shaft to absorb radial and thrust loads at higher input speeds
  • Tapered roller bearings are used on output shaft
  • Forged bronze worm gears provide optimum balance of strength and wear
  • Heavy duty tapered roller bearings on all output shafts
  • 56C motor frame size

Specifications

Centre Distance:1.33 in
Country of Origin:US
Dimensions:6.07 in L x 4.75 in W x 4.66 in H
Efficiency:80 %
Gear Ratio:20:1
Horsepower:1 hp
Input Maximum Speed:1750 rpm
Input Size:5/8 in Dia
Input Type:C-Face Quilled
Keyway Size:3/16 x 3/32 in Input/3/16 x 1-1/2 in Output
Lubrication Type:Polyglycol Oil
Material:Cast Iron
Mounting Type:Direct/Floor
Output Maximum Speed:87.5 rpm
Output Size:5/8 in ID
Output Type:Hollow
Torque Rating:19.84 in-lb Input/87.5 in-lb Output
