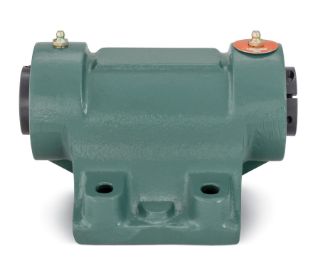

Actual Product May Vary From Image

134192 DOD

Name: 134192 DOD
Brand: Dodge
SKU: 134192 DOD
Price: 787.19 USD
Availability: OutOfStock

F&B-CC-107-DL

Manufacturer: Dodge

Manufacturer part number: 134192

Estimated dates are contingent upon manufacturer stock.

Please login to see accurate availability

$787.19

Qty:

Product Details

Ball Bearing Series:	207 Series
Base to Center Height:	3.0000
Base to Center Height (Unit):	INCH
Bearing Type:	Ball
Bolt Diameter:	0.5000
Bolt Diameter (Unit):	INCH
Bolt to Bolt (Max):	8.2500
Bolt to Bolt (Max) (Unit):	INCH
Bolt to Bolt (Min):	7.7500
Bolt to Bolt (Min) (Unit):	INCH
Bolt Width:	3.5000
Bolt Width (Unit):	INCH
Bore Length:	10.3500
Bore Length (Unit):	INCH
Dynamic Load Capacity:	5759
Dynamic Load Capacity (Unit):	POUND_FORCE
Expansion Capability:	Non-Expansion (Fixed)
Greasable:	Yes
Grease Name:	Unirex N2
Housing Construction:	Solid
Housing Material:	Cast Iron
Housing Type:	Fan and Blower Pillow Block
Insert Material:	Steel
Lubrication:	Grease
Maximum Speed:	5500
Maximum Speed (Unit):	RPM
Seal Type:	Single-Lip Contact
Sensor Ready:	Adapter Required
Shaft Attachment:	Clamp Collar
Shaft Diameter:	1.4375
Shaft Diameter (Unit):	INCH
Standoff Housing:	No
Static Load Capacity:	3461
Static Load Capacity (Unit):	POUND_FORCE
Suitable for High Temperature:	No
Suitable For Washdown:	No
