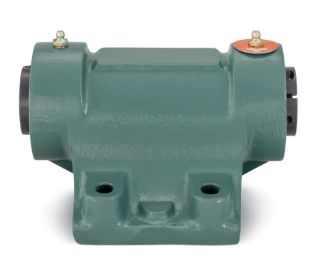

Actual Product May Vary From Image

134196 DOD

Name: 134196 DOD
Brand: Dodge
SKU: 134196 DOD
Price: 1,181.09 USD
Availability: OutOfStock

F&B-CC-203-DL

Manufacturer: Dodge

Manufacturer part number: 134196

Estimated dates are contingent upon manufacturer stock.

Please login to see accurate availability

$1,181.09

Qty:

Product Details

Ball Bearing Series:	211 Series
Base to Center Height:	3.5000
Base to Center Height (Unit):	INCH
Bearing Type:	Ball
Bolt Diameter:	0.6250
Bolt Diameter (Unit):	INCH
Bolt to Bolt (Max):	10.0000
Bolt to Bolt (Max) (Unit):	INCH
Bolt to Bolt (Min):	9.0000
Bolt to Bolt (Min) (Unit):	INCH
Bolt Width:	4.0000
Bolt Width (Unit):	INCH
Bore Length:	13.7200
Bore Length (Unit):	INCH
Dynamic Load Capacity:	9755
Dynamic Load Capacity (Unit):	POUND_FORCE
Expansion Capability:	Non-Expansion (Fixed)
Greasable:	Yes
Grease Name:	Unirex N2
Housing Construction:	Solid
Housing Material:	Cast Iron
Housing Type:	Fan and Blower Pillow Block
Insert Material:	Steel
Lubrication:	Grease
Maximum Speed:	3500
Maximum Speed (Unit):	RPM
Seal Type:	Single-Lip Contact
Sensor Ready:	Adapter Required
Shaft Attachment:	Clamp Collar
Shaft Diameter:	2.1875
Shaft Diameter (Unit):	INCH
Standoff Housing:	No
Static Load Capacity:	6588
Static Load Capacity (Unit):	POUND_FORCE
Suitable for High Temperature:	No
Suitable For Washdown:	No
