135511 LOC

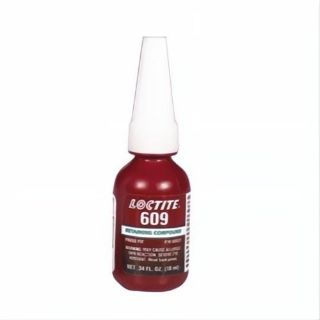

Loctite® 135511 609™ General Purpose Retaining Compound, 10 mL Bottle, Liquid, Green, 1.1000000000000001
Manufacturer: Henkel Loctite
Manufacturer part number: 135511
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
11 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$18.09

Product Details

Brand Name

Loctite®

Type

General Purpose

Alternate Supplier #

Berkshire eSupply - LM5060921
Grainger - 4KM29

Description

LOCTITE® 609™ retaining compound general purpose is a low viscosity, rapid-curing anaerobic adhesive that augments the strength of press fit assemblies or slip fit assemblies up to 0.006 in diameter. Adds up to 3000 psi holding power. Recommended for parts that will need subsequent dismantling, i.e., retention of bearings onto shafts and into housings
Loctite® Retaining Compound, General Purpose, Series: 609™, Bottle, 10 mL, Composition: Polyglycol Dimethacrylate, 2-Hydroxyethyl methacrylate, Ethyl methacrylate homopolymer, Cumene hydroperoxide, Saccharin, Adhesion Promoter, Cumene, Liquid, 10 min Application, 24 hr Curing, Green, Mild, -65 to 300 deg F, 1.1 Specific Gravity, 199.94 deg F Flash, 2.46 g/L VOC, 125 cPs Viscosity Rating, 2300 psi Shear Strength

Standards

CFIA Listed | ASTM D5363 | MIL-R-46082B

Specifications

Application Time:10 min
Color:Green
Composition:Polyglycol Dimethacrylate, 2-Hydroxyethyl methacrylate, Ethyl methacrylate homopolymer, Cumene hydroperoxide, Saccharin, Adhesion Promoter, Cumene
Container Size:10 mL
Container Type:Bottle
Country of Origin:US
Curing Time:24 hr
Flash Point:199.94 deg F
Form:Liquid
Odor/Scent:Mild
Series:609™
Shear Strength:2300 psi
Specific Gravity:1.1
Temperature Rating:-65 to 300 deg F
Viscosity Rating:125 cPs
VOC Content:2.46 g/L
