Actual Product May Vary From Image

135RIN582 R3 TKN

Name: 135RIN582 R3 TKN
Brand: Timken
SKU: 135RIN582 R3 TKN
Availability: OutOfStock

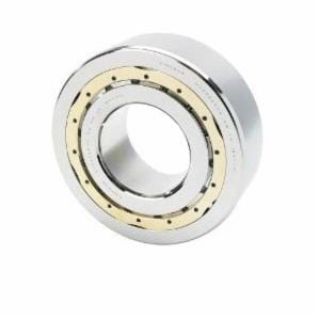

Timken® 135RIN582 R3 Standard Type RIN Radial Cylindrical Roller Bearing, 13-1/2 in Dia Bore, 20-3/4 in OD, Single Rows, 4.12 in W

Manufacturer: Timken

Manufacturer part number: 135RIN582 R3

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Timken®

Type

Standard Type RIN

Description

A radial cylindrical roller bearing consists of an inner and/or outer ring and a complement of controlled-contour cylindrical rollers. Depending on the style of bearing, either the inner or the outer ring will have two roller-guiding ribs. The other ring, separable from the assembly, has one rib or none. The ring with two ribs axially locates the position of the roller assembly. The diameters of these ribs may be used to support the roller. One of the ribs may carry light thrust loads when an opposing rib is provided in the mating ring.

Timken® Radial Cylindrical Roller Bearing, Standard Type RIN, 13-1/2 in Bore Dia, 20-3/4 in Outside Dia, Single Rows, 4.12 in W, Open Closure, Brass/Bronze Cage, 345 rpm Grease/690 rpm Oil Maximum, 302 deg F

Application

Power Generation, Oil Fields, Crop Shears, Gear Drives, Hoists, Metals Construction, Mining, Aggregate Processing, Pumps, Rolling Mills, Wheel-End Planetaries, Wind Energy and Other Industrial Equipment

Standards

ABMA Certified

Specifications

Bore Diameter:	13-1/2 in
Cage Material:	Brass/Bronze
Closure Type:	Open
Maximum Speed:	345 rpm Grease/690 rpm Oil
Number of Rows:	Single
Outside Diameter:	20-3/4 in
Temperature Rating:	302 deg F
Width:	4.12 in
