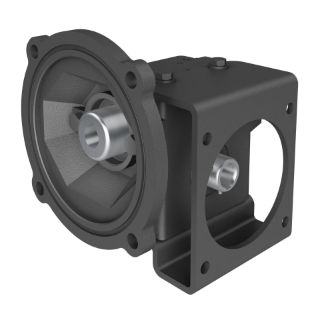

Actual Product May Vary From Image

136 7.5/1 R WR 56C .625 HUB

Name: 136 7.5/1 R WR 56C .625 HUB
SKU: 136 7.5/1 R WR 56C .625 HUB
Availability: OutOfStock

Hub City® PowerCubeX® 0230-00266 130PCX Right Angle Single Reduction Style R Worm Gear Reducer With Side Mounting Flange, C-Face Quill Input, Hollow Bore Output, 1.06 hp Input, 7.5:1 Gear, 233 rpm Maximum Output, 240 in-lb Output Torque Rating

Manufacturer part number: 0230-00266

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Hub City®

Type

Right Angle Single Reduction Style R

Description

Hub City® PowerCubeX® Worm Gear Reducer, Right Angle Single Reduction Style R, Series: 130PCX, 7.5:1 Gear Ratio, 1.06 hp Input, C-Face Quill Input, Hollow Bore Output, 5/8 in Dia Input, 5/8 in Dia Output, 233 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 240 in-lb Output, 1.33 in Centre Distance, 3/16 x 3/32 in Output Keyway, 83.9 % Efficiency, Conventional Oil Lubrication, Cast Iron

Application

Conveyors and Conveying Equipment, Printing Equipment, Agriculture, Food Processing, Bottling Equipment, Grain Handling, Packaging Machinery, Cement and Asphalt

Standards

AGMA Class 1

Features

Modular design
Universal mounting dimensions
Increased thermal capacity and increased efficiency
Alloy shafting
FKM seals

Specifications

Centre Distance:	1.33 in
Efficiency:	83.9 %
Gear Ratio:	7.5:1
Horsepower:	1.06 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	5/8 in Dia
Input Type:	C-Face Quill
Keyway Size:	3/16 x 3/32 in Output
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Output Maximum Speed:	233 rpm
Output Size:	5/8 in Dia
Output Type:	Hollow Bore
Series:	130PCX
Torque Rating:	240 in-lb Output
