13Q05L56 DOD

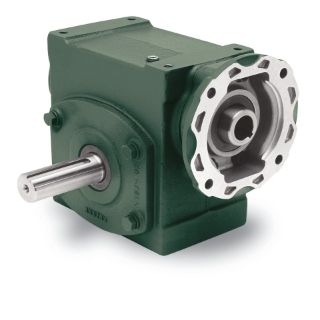

13Q05L56 TIGEAR-2 REDUCER
Manufacturer: Dodge
Manufacturer part number: 13Q05L56
Estimated dates are contingent upon manufacturer stock.
Please login to see accurate availability
$644.52

Product Details

Specifications

Base to Output Center Height:1.7100
Base to Output Center Height (Unit):INCH
Case Size:13
Center Distance:1.3300
Center Distance (Unit):INCH
Center to End of Shaft Distance:4.0000
Center to End of Shaft Distance (Unit):INCH
Gearbox Component Type:Gearbox
Horsepower Rating Input:1.3200
Horsepower Rating Input (Unit):HORSEPOWER
Horsepower Rating Output:1.2200
Horsepower Rating Output (Unit):HORSEPOWER
Housing Material:Cast Iron
Input Style:Quill
Lubrication:PAG, Standard Temperature
Motor Compatibility:NEMA Motor, 56C Frame
Mounting Bolt Pattern Length:3.2500
Mounting Bolt Pattern Length (Unit):INCH
Mounting Bolt Pattern Width:2.0000
Mounting Bolt Pattern Width (Unit):INCH
Nominal Ratio:5.0000
Output Shaft:Left (Solid A)
Output Shaft Center to Input Motor Mounting Face Distance:4.3900
Output Shaft Center to Input Motor Mounting Face Distance (Unit):INCH
Output Style:Left
Overhung Load:650
Overhung Load (Unit):POUND_FORCE
Paint Type:Standard
Rated Torque Output:219
Rated Torque Output (Unit):INCH_POUND
Seal Type:Single-Lip Contact
Shaft Diameter Output:0.6250
Shaft Diameter Output (Unit):INCH
Shaft Length Output:1.9000
Shaft Length Output (Unit):INCH
Suitable For Washdown:No
Thermal Horsepower Rating:2.9400
Thermal Horsepower Rating (Unit):HORSEPOWER
