Actual Product May Vary From Image

13S 2 7/8 MSG

Name: 13S 2 7/8 MSG
Brand: Martin Sprocket & Gear
SKU: 13S 2 7/8 MSG
Price: 309.94 USD
Availability: OutOfStock

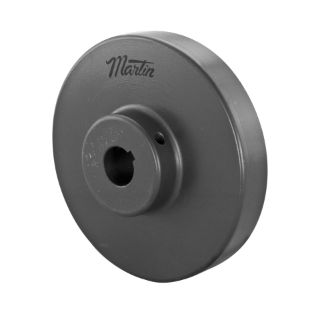

Martin Quadra-Flex® 13S 2 7/8 Bored to Size Type S Coupling Flange, 013 Coupling, 2-7/8 in Bore Dia, 4-3/8 in Length Through Bore, 6-3/4 in Hub Dia, Cast Iron

Manufacturer: Martin Sprocket & Gear

Manufacturer part number: 13S 2 7/8

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$309.94

Qty:

Product Details

Brand Name

Martin

Type

Bored to Size Type S

Description

Martin Quadra-Flex® is a proven design which offers long life, torsional flexibility, ease of installation, and withstands misalignment, shock, and vibration. Available in sizes 3 to 16 in bored to size, QD bushed, spacer type and plain bore for custom requirements.

Martin Quadra-Flex® Coupling Flange, Bored to Size Type S, 013 Coupling, 2-7/8 in Bore Dia, 6-3/4 in Hub Dia, 1-5/16 in Hub Length, 3/4 x 3/8 in Keyway, 2400 rpm Maximum, 4-3/8 in Length Through Bore, 5/8-11 x 5/8 in (Set Screw) Screw, Cast Iron

Features

Handles various combinations of shock, vibration and misalignment
No lubrication needed and easy to install
Precise machining and processes ensure consistent finish and high quality

Specifications

Bore Diameter:	2-7/8 in
Country of Origin:	US
Coupling Size:	013
Hub Diameter:	6-3/4 in
Hub Length:	1-5/16 in
Keyway Size:	3/4 x 3/8 in
Length Through Bore:	4-3/8 in
Material:	Cast Iron
Maximum Speed:	2400 rpm
Screw Size:	5/8-11 x 5/8 in (Set Screw)
