14002-2A BSF

Name: 14002-2A BSF
Brand: Bussmann
SKU: 14002-2A BSF
Availability: OutOfStock

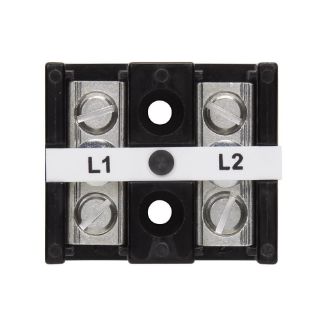

Bussmann Magnum® 14002-2A 2-Pole Power Terminal Block, 600 VAC/VDC, 115 A, 14 to 2 AWG Cu, 8 AWG Al Wire

Manufacturer: Bussmann

Manufacturer part number: 14002-2A

Availability: Expected Leadtime 38 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

2-Pole

Description

Bussmann provides the broadest offering of UL listed Cable Limiters, Welder Limiters, Circuit Limiters and accessories. With products rated for AC or DC applications to suit your specific application requirements.

Bussmann Magnum® Power Terminal Block, 2-Pole, Series: 14002, 600 VAC/VDC, 115 A, 14 to 2 AWG Cu, 8 AWG Al Wire, Dual Wall Barrier Style, Chassis/Panel Mount, Screw, 150 deg C, 1.3 in L x 1.55 in W x 1.6 in H

Application

Electrical Assemblies, Panels and EOEMs Applications

Standards

CE Certifed | CSA LR15364 | Guide XCFR2 | RoHS Compliant | UL File No. E62622

Specifications

Amperage Rating:	115 A
Barrier Style:	Dual Wall
Connection Type:	Screw
Country of Origin:	MX
Dimensions:	1.3 in L x 1.55 in W x 1.6 in H
Mounting Type:	Chassis/Panel
Series:	14002
Temperature Rating:	150 deg C
Voltage Rating:	600 VAC/VDC
Wire Size:	14 to 2 AWG Cu, 8 AWG Al
