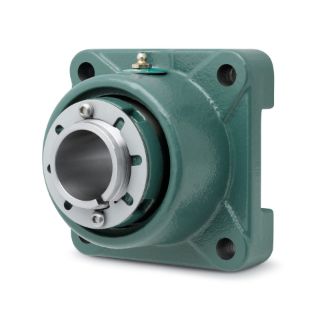

Actual Product May Vary From Image

140222 DOD

Name: 140222 DOD
Brand: Dodge
SKU: 140222 DOD
Price: 768.54 USD
Availability: OutOfStock

EF4B-IP-207LE-HT

Manufacturer: Dodge

Manufacturer part number: 140222

Estimated dates are contingent upon manufacturer stock.

Please login to see accurate availability

$768.54

Qty:

Product Details

Bearing Component:	Mounted Bearing
Bearing Type:	Spherical Roller
Bolt Circle:	7.6000
Bolt Circle (Unit):	INCH
Bolt Diameter:	0.6250
Bolt Diameter (Unit):	INCH
Bolt to Bolt (Max):	5.3700
Bolt to Bolt (Max) (Unit):	INCH
Bolt to Bolt (Min):	5.3700
Bolt to Bolt (Min) (Unit):	INCH
Bolt Width:	5.3700
Bolt Width (Unit):	INCH
Bore Length:	3.4200
Bore Length (Unit):	INCH
Dynamic Load Capacity:	39000
Dynamic Load Capacity (Unit):	POUND_FORCE
Expansion Capability:	Expansion (Float)
Greasable:	Yes
Grease Name:	MobilGrease HTS #2
Housing Construction:	Solid
Housing Dimensional Standard:	Type E
Housing Material:	Cast Iron
Housing Type:	Four-Bolt Flange
Insert Material:	Steel
Insert Outer Diameter:	120.0000
Insert Outer Diameter (Unit):	MILLIMETER
Lubrication:	Grease
Maximum Speed:	3800
Maximum Speed (Unit):	RPM
Seal Type:	Labyrinth
Sensor Ready:	Yes
Shaft Attachment:	Push-Pull Adapter
Shaft Diameter:	2.4375
Shaft Diameter (Unit):	INCH
Static Load Capacity:	47500
Static Load Capacity (Unit):	POUND_FORCE
Suitable for High Temperature:	Yes
