Home / 1404MB WOO

1404MB WOO

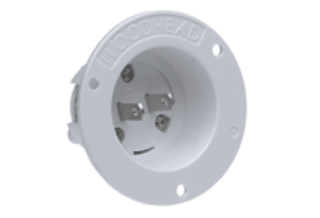

Picture of 1404MB WOO
Actual Product May Vary From Image

Product Details

Manufacturer:
Molex/Woodhead
Manufacturer part number:
1404MB
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Woodhead®

Type

Heavy Duty Male

Description

Woodhead® Safeway™ Flanged Inlet, Heavy Duty Male, Series: 130149, 125 VAC, 15 A, 2 Pole, 2 Wires, NEMA 1-15, Industrial Grade, -40 to 75 deg C, Screw Terminal, Nylon, White

Standards

UL File No. E46231, E38085 | CSA File No. LR6837

Features

  • Rugged nylon bodies within the Safeway™ offering provide exceptional durability and performance
  • Color coded 1/4 in terminal screws preset in open position, ready to wire
  • Wire screw terminals are tri-drive to be used with straight blade, Phillips and square drive screw drivers
  • Floating blade construction provides self-alignment and a better mechanical and electrical connection minimizing wear and heat generation
  • Transparent wiring guide to verify all wire strands are in place before securing wire
  • Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life
  • 2-piece cord clamp strain relief includes tri-drive screws to firmly secure the cord

Specifications

Amperage Rating:15 A
Color:White
Country of Origin:MX
Grade:Industrial
Material:Nylon
NEMA Rating:NEMA 1-15
Number of Poles:2
Number of Wires:2
Series:130149
Temperature Rating:-40 to 75 deg C
Terminal Type:Screw
Voltage Rating:125 VAC
