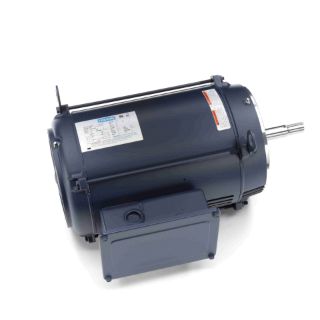

Actual Product May Vary From Image

140644.00 LEE

Name: 140644.00 LEE
Brand: Leeson Electric
SKU: 140644.00 LEE
Availability: OutOfStock

LEESON® 140644.00 2-Pole Continuous Duty AC Motor, DP Enclosure, 10 hp, 230 VAC, 60 Hz, 1 ph Phase, 215JM Frame, 3465 rpm Speed, C-Face/Rigid Base Mount

Manufacturer: Leeson Electric

Manufacturer part number: 140644.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

LEESON®

Type

2-Pole Continuous Duty

Description

LEESON® AC Motor, 2-Pole Continuous Duty, Jet Pump (JM/JP) Motors Application, Capacitor Start Motors Special Features, 10 hp, 230 VAC, 47 A, 60 Hz Frequency, 1 ph ph, 3465 rpm Speed, 1 Speed, DP Enclosure, 215JM Frame, 0.88 in Dia x 4.21 in L Shaft, Selective CCW Rotation, 1.15 Service Factor, Ball Bearing, 15.1 ft-lb Torque, C-Face/Rigid Base Mounting, 40 deg C, Insulation Class: Class B, Rolled Steel, 10:1 Variable Torque Speed, 19.92 in L x 12.78 in W x 11 in H Dimensions

Application

Commercial and Industrial Applications

Standards

CSA Certified | UL Listed

Features

Capacitor Start Motors

Specifications

Amperage Rating:	47 A
Application Type:	Jet Pump (JM/JP) Motors
Bearing Type:	Ball
Country of Origin:	MX
Dimensions:	19.92 in L x 12.78 in W x 11 in H
Enclosure Type:	DP
Frame:	215JM
Frequency Rating:	60 Hz
Horsepower:	10 hp
Insulation Class:	Class B
Material:	Rolled Steel
Mounting Type:	C-Face/Rigid Base
Number of Speeds:	1
Phase:	1 ph
Rotation:	Selective CCW
Service Factor:	1.15
Shaft Size:	0.88 in Dia x 4.21 in L
Speed:	3465 rpm
Temperature Rating:	40 deg C
Torque Rating:	15.1 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	230 VAC
