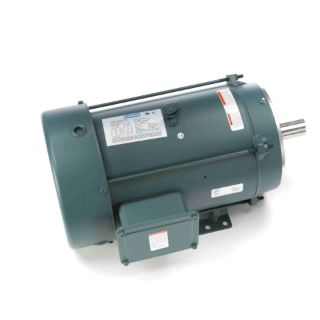

Actual Product May Vary From Image

140770.00 LEE

Name: 140770.00 LEE
Brand: Leeson Electric
SKU: 140770.00 LEE
Availability: OutOfStock

LEESON® Ultimate e® 140770.00 2-Pole Continuous Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 7.5 hp, 230/460 VAC, 60 Hz, 3 ph Phase, 213TC Frame, 3540 rpm Speed, C-Face/Rigid Base Mount

Manufacturer: Leeson Electric

Manufacturer part number: 140770.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

LEESON®

Type

2-Pole Continuous Duty

Description

LEESON® Ultimate e® AC Motor, 2-Pole Continuous Duty, General Purpose AC Motors Application, 7.5 hp, 230/460 VAC, 17.8/8.9 A, 60 Hz Frequency, 3 ph ph, 3540 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 213TC Frame, 1.38 in Dia x 3.38 in L Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 11.1 ft-lb Torque, C-Face/Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Rolled Steel, 10:1 Variable Torque Speed, 20.57 in L x 13.07 in W x 11.66 in H Dimensions

Application

Commercial and Industrial Applications

Standards

CE/CSA Certified | UL Listed

Features

Premium efficient ratings and inverter rated
Class F insulation system 140 frame and higher
Shielded ball bearings for direct coupled applications
Dynamically balanced rotors
Torques exceed NEMA performance standards
WattSaver® e premium efficient motors
Ultimate® premium efficient motors

Specifications

Amperage Rating:	17.8/8.9 A
Application Type:	General Purpose AC Motors
Bearing Type:	Ball
Country of Origin:	MX
Dimensions:	20.57 in L x 13.07 in W x 11.66 in H
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	213TC
Frequency Rating:	60 Hz
Horsepower:	7.5 hp
Insulation Class:	Class F
Material:	Rolled Steel
Mounting Type:	C-Face/Rigid Base
Number of Speeds:	1
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.15
Shaft Size:	1.38 in Dia x 3.38 in L
Speed:	3540 rpm
Temperature Rating:	40 deg C
Torque Rating:	11.1 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	230/460 VAC
