140820.00 MAR

Name: 140820.00 MAR
Brand: Leeson Electric
SKU: 140820.00 MAR
Price: 2,537.37 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

140820.00

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

$2,537.37 / EA

Description

Brand Name

LEESON®

Type

4-Pole Continuous-Duty

Alternate Supplier #

Grainger - 48ZF90

Description

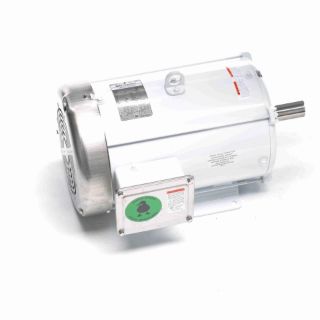

LEESON® Washguard® AC Motor, 4-Pole Continuous-Duty, General Purpose AC Motors Application, 10 hp, 230/460 VAC, 26.8/13.4 A, 60 Hz Frequency, 3 ph, 1765 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 215T Frame, 1.38 in Dia x 3.38 in L Shaft, Reversible Rotation, 1.25 Service Factor, Ball Bearing, 29.75 ft-lb Torque, C-Face/Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Rolled Steel, 10:1 Variable Torque Speed, 19.71 in L x 11.77 in H Dimensions

Application

Commercial and Industrial Applications

Standards

BISSC/CE/CSA Certified | UL Listed

Features

USDA approved epoxy painted motors
NEMA motors
Rigid base and C face mount types
BISSC approved designs, Double lip contact seals and v-ring seals used for shaft seals
Washdown brakemotors and pump motors available

Specifications

Amperage Rating:	26.8/13.4 A
Application Type:	General Purpose AC Motors
Bearing Type:	Ball
Country of Origin:	MX
Dimensions:	19.71 in L x 11.77 in H
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	215T
Frequency Rating:	60 Hz
Horsepower:	10 hp
Insulation Class:	Class F
Material:	Rolled Steel
Mounting Type:	C-Face/Rigid Base
Number of Speeds:	1
Phase:	3
Rotation:	Reversible
Service Factor:	1.25
Shaft Size:	1.38 in Dia x 3.38 in L
Speed:	1765 rpm
Temperature Rating:	40 deg C
Torque Rating:	29.75 ft-lb
Variable Torque Speed Range:	10:01
Voltage Rating:	230/460 VAC
