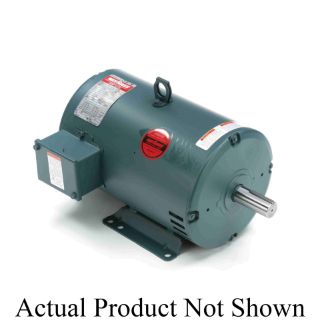

Actual Product May Vary From Image

140831.00 LEE

Name: 140831.00 LEE
Brand: Leeson Electric
SKU: 140831.00 LEE
Availability: OutOfStock

LEESON® 140831.00 4-Pole Continuous Duty AC Motor With F2 Conduit Box, DP Enclosure, 7.5 hp, 230/460 VAC, 60 Hz, 3 ph Phase, 213T Frame, 1765 rpm Speed, C-Face/Rigid Base Mount

Manufacturer: Leeson Electric

Manufacturer part number: 140831.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

LEESON®

Type

4-Pole Continuous Duty

Description

LEESON® AC Motor, 4-Pole Continuous Duty, Fan and Blower Motors, General Purpose AC Motors Application, 7.5 hp, 230/460 VAC, 21.8 to 20.8/10.4 A, 60 Hz Frequency, 3 ph ph, 1765 rpm Speed, 1 Speed, DP Enclosure, 213T Frame, 1.38 in Dia x 3.38 in L Shaft, Reversible Rotation, 1.25 Service Factor, Ball Bearing, 22.5 ft-lb Torque, C-Face/Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Rolled Steel, 10:1 Variable Torque Speed, 16.25 in L x 11.74 in H Dimensions

Application

Belt Driven Fans or Fan-on-Shaft, Commercial and Industrial Applications

Standards

CE/CSA Certified | UL Listed

Features

NEMA design B performance
Moderate starting torque
Squirrel cage induction run

Specifications

Amperage Rating:	21.8 to 20.8/10.4 A
Application Type:	Fan and Blower Motors, General Purpose AC Motors
Bearing Type:	Ball
Country of Origin:	MX
Dimensions:	16.25 in L x 11.74 in H
Enclosure Type:	DP
Frame:	213T
Frequency Rating:	60 Hz
Horsepower:	7.5 hp
Insulation Class:	Class F
Material:	Rolled Steel
Mounting Type:	C-Face/Rigid Base
Number of Speeds:	1
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.25
Shaft Size:	1.38 in Dia x 3.38 in L
Speed:	1765 rpm
Temperature Rating:	40 deg C
Torque Rating:	22.5 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	230/460 VAC
