Actual Product May Vary From Image

140BTB13 MSG

Name: 140BTB13 MSG
Brand: Martin Sprocket & Gear
SKU: 140BTB13 MSG
Price: 329.92 USD
Availability: OutOfStock

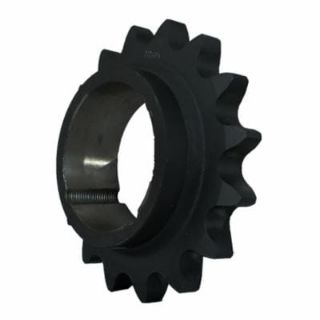

Martin 140BTB13 Taper Bushed Type B Single Pitch Roller Chain Sprocket, 8.15 in OD, #140 Chain, 13 Teeth, 1-3/4 in Pitch, Steel

Manufacturer: Martin Sprocket & Gear

Manufacturer part number: 140BTB13

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$329.92

Qty:

Product Details

Brand Name

Martin

Type

Taper Bushed Type B

Description

A taper bushed sprocket is a sprocket where a tapered bushing is bolted into the taper bore that is machined in the sprocket. When installed this bushing is compressed onto the shaft providing a tight grip. Taper bushed sprockets have a tapered bushing bolted into a taper bore with hex head set screws instead of bolts.

Martin Single Pitch Roller Chain Sprocket, Taper Bushed Type B, 8.15 in Outside Dia, #140 Chain, 13 Teeth, 1-3/4 in Pitch, 7.313 in, 5-1/4 in Hub Dia, 2 in Length Through Bore, 3020 Taper Lock Bushing, Steel

Standards

PROP65: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information: www.P65Warnings.ca.gov

Specifications

Bushing Type:	3020 Taper Lock
Chain Size:	#140
Country of Origin:	US
Hub Diameter:	5-1/4 in
Length Through Bore:	2 in
Material:	Steel
Number of Teeth:	13
Outside Diameter:	8.15 in
Pitch:	1-3/4 in
Pitch Diameter:	7.313 in
