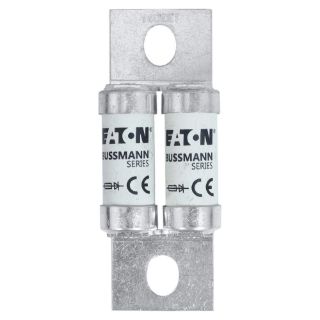

Actual Product May Vary From Image

140EET BSF

Name: 140EET BSF
Brand: Bussmann
SKU: 140EET BSF
Availability: OutOfStock

Bussmann 140EET British Standard High Speed Fuse, 140 A, 690 V, 200 kA Interrupt

Manufacturer: Bussmann

Manufacturer part number: 140EET

Availability: Expected Leadtime 30 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

British Standard

Description

Eaton's Bussmann British standard BS88 fuses can be used in multiple applications; industrial, utility, street lighting and domestic. Full range of rated current and voltage available as well as compatible fuse holders. They meet the BS88 part 1 and 2 and IEC 60269-1 and -2 standards.

Bussmann High Speed Fuse, British Standard, Series: EET, Non-Indicating, 140 A, 690 V, 200 kA Interrupt, Blade End Terminal, Stud Mounting, 4.38 in L x 1.5 in W x 1.5 in H Body

Application

Electrical Assemblies, Panels and EOEMs, Power Distribution and Control, Control Panels for Machines, Panel Builders, Aftermarket, Industrial Facilities and Factory Facilities, Safety and Security Systems, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starters Applications

Standards

CE Marking | IEC Certified | RoHS Compliant | UL Listed

Features

35 W power loss

Specifications

Amperage Rating:	140 A
Body Size:	4.38 in L x 1.5 in W x 1.5 in H
Country of Origin:	IN
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	200 kA
Mounting Type:	Stud
Series:	EET
Terminal Type:	Blade End
Voltage Rating:	690 V
