Actual Product May Vary From Image

140H-6 O/L MOR

Name: 140H-6 O/L MOR
Brand: Regal Rexnord
SKU: 140H-6 O/L MOR
Availability: OutOfStock

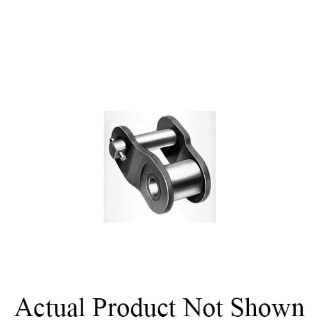

Morse® 324261 Heavy Duty Offset Link With Cotter Pin, 140 Chain, 1-3/4 in Pitch, 12.521 in OAW, 1/2 in Dia Pin, Steel

Manufacturer: Regal Rexnord

Manufacturer part number: 324261

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Morse®

Type

Heavy Duty

Description

Regular offset links are used (one per chain) when a chain length contains an odd number of pitches. Regular offset links are standard for all pitches in both single-width and multiple width roller chains. The pin has a slip fit in both plates and is flat on one end to prevent rotation.

Morse® Offset Link, Heavy Duty, 140 Chain, 1-3/4 in Pitch, 12.521 in Overall Width, 1/2 in Pin Dia, 1.634 in Link Plate Height, 1/4 in Link Plate Thickness, Steel

Application

Oil Industry Machinery, Paper Industry Machinery, Rubber, Plastic Industry Equipment and Textile Industries

Standards

ANSI B29.1

Features

6-strands

Specifications

Chain Size:	140
Country of Origin:	CN
Link Plate Height:	1.634 in
Link Plate Thickness:	1/4 in
Material:	Steel
Overall Width:	12.521 in
Pin Diameter:	1/2 in
Pitch:	1-3/4 in
