Actual Product May Vary From Image

140R 50.17FT MOR

Name: 140R 50.17FT MOR
Brand: Regal Rexnord
SKU: 140R 50.17FT MOR
Availability: OutOfStock

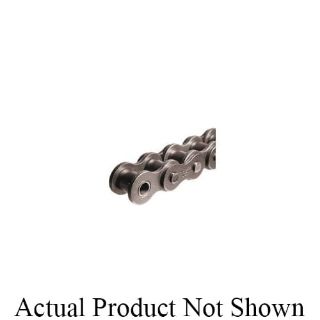

Morse® 325643 Riveted Standard Duty Roller Chain, 50.17 ft OAL, 1-3/4 in Pitch, 1 in Dia x 1 in W Roller, Steel

Manufacturer: Regal Rexnord

Manufacturer part number: 325643

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Morse®

Type

Riveted Standard Duty

Description

Morse® markets roller chain featuring greater resistance and increased endurance limit. Morse® shot-peens its rollers to create a favorable state of compression residual stress on the surface. This process eliminates surface cracks and blemishes. The chain offered meets the standards required in the marketplace for many applications.

Morse® Roller Chain, Riveted Standard Duty, 1-3/4 in Pitch, 1/2 in Pin Diameter, 2.117 in Pin Length, 1 in Roller Diameter, 1 in Roller Width, 1.634 in Plate Height, 0.219 in Plate Thickness, 5 Links, 1 Strands, 46000 lb Tensile Strength, 50.17 ft Overall Length, Steel

Application

Aggregate, Cement, Forestry, Minerals, Mining, Pulp and Paper Industries

Standards

ANSI B29.1

Features

Created for applications requiring high horsepower at low speeds
Far exceeds ANSI performance standard
Rigid manufacturing processes result in a fully-featured chain
Unmatched quality and performance

Specifications

Country of Origin:	CN
Material:	Steel
Number of Links:	5
Number of Strands:	1
Overall Length:	50.17 ft
Pin Diameter:	1/2 in
Pin Length:	2.117 in
Pitch:	1-3/4 in
Plate Height:	1.634 in
Plate Thickness:	0.219 in
Roller Diameter:	1 in
Roller Width:	1 in
Tensile Strength:	46000 lb
