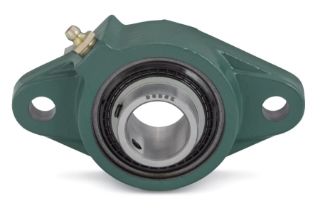

Actual Product May Vary From Image

141138 DOD

Name: 141138 DOD
Brand: Dodge
SKU: 141138 DOD
Price: 92.91 USD
Availability: OutOfStock

F2B-SC-100-DRY

Manufacturer: Dodge

Manufacturer part number: 141138

Estimated dates are contingent upon manufacturer stock.

Please login to see accurate availability

$92.91

Qty:

Product Details

Ball Bearing Series:	205 Series
Bearing Type:	Ball
Bolt Diameter:	0.4375
Bolt Diameter (Unit):	INCH
Bolt to Bolt (Max):	3.8900
Bolt to Bolt (Max) (Unit):	INCH
Bolt to Bolt (Min):	3.8900
Bolt to Bolt (Min) (Unit):	INCH
Bore Length:	1.3400
Bore Length (Unit):	INCH
Dynamic Load Capacity:	3146
Dynamic Load Capacity (Unit):	POUND_FORCE
Expansion Capability:	Non-Expansion (Fixed)
Greasable:	Yes
Grease Name:	None
Housing Construction:	Solid
Housing Material:	Cast Iron
Housing Type:	Two-Bolt Flange
Insert Material:	Steel
Lubrication:	None
Maximum Speed:	4500
Maximum Speed (Unit):	RPM
Seal Type:	Single-Lip Contact
Sensor Ready:	Adapter Required
Shaft Attachment:	Setscrew
Shaft Diameter:	1.0000
Shaft Diameter (Unit):	INCH
Standoff Housing:	No
Static Load Capacity:	1769
Static Load Capacity (Unit):	POUND_FORCE
Suitable for High Temperature:	No
Suitable For Washdown:	No
