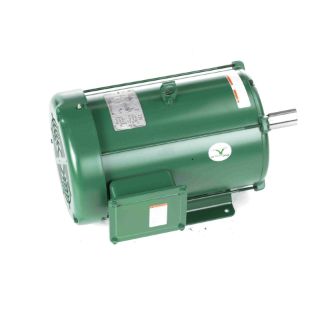

Actual Product May Vary From Image

141146.00 LEE

Name: 141146.00 LEE
Brand: Leeson Electric
SKU: 141146.00 LEE
Availability: OutOfStock

LEESON® 141146.00 4-Pole Continuous-Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 10 hp, 230/460 VAC, 60 Hz, 3 ph Phase, 215T Frame, 1765 rpm Speed, Rigid Base Mount

Manufacturer: Leeson Electric

Manufacturer part number: 141146.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

LEESON®

Type

4-Pole Continuous-Duty

Description

LEESON® AC Motor, 4-Pole Continuous-Duty, Farm Duty Motors Application, 10 hp, 230/460 VAC, 26.8/13.4 A, 60 Hz Frequency, 3 ph ph, 1765 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 215T Frame, 1.38 in Dia x 3.38 in L Shaft, Reversible Rotation, 1.25 Service Factor, Ball Bearing, 29.75 ft-lb Torque, Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Rolled Steel, 10:1 Variable Torque Speed, 19.7 in L x 11.77 in H Dimensions

Application

Commercial and Industrial Applications

Standards

CE/CSA Certified | UL Listed

Features

Premium efficient ratings
Double sealed ball bearings with high temperature grease
Shaft flinger output shaft
Normally closed thermostat protected
Weep holes provide condensation drains
Squirrel cage induction run

Specifications

Amperage Rating:	26.8/13.4 A
Application Type:	Farm Duty Motors
Bearing Type:	Ball
Country of Origin:	MX
Dimensions:	19.7 in L x 11.77 in H
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	215T
Frequency Rating:	60 Hz
Horsepower:	10 hp
Insulation Class:	Class F
Material:	Rolled Steel
Mounting Type:	Rigid Base
Number of Speeds:	1
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.25
Shaft Size:	1.38 in Dia x 3.38 in L
Speed:	1765 rpm
Temperature Rating:	40 deg C
Torque Rating:	29.75 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	230/460 VAC
