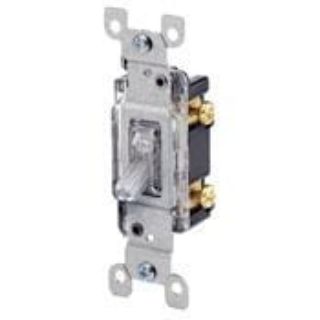

Picture of 1461-LHC LEV
Actual Product May Vary From Image

1461-LHC LEV

Leviton® 1461-LHC AC Quiet Toggle Switch, 120 VAC, 15 A, 1/2 hp Power Rating
Manufacturer: Leviton Manufacturing
Manufacturer part number: 1461-LHC
Availability: Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Leviton®

Description

Tried-and-true toggle designs, Leviton® residential grade AC Quiet switches cover all the bases; they install easily and are available in standard and illuminated versions. Their toggles and frames are constructed from impact-resistant thermoplastic, and they feature large head, hardened triple-drive screws for easy installation. Levitons traditional switches are compatible with a wide range of Leviton plastic and metal wallplates.
Leviton® AC Quiet Toggle Switch, 120 VAC, 15 A, 1/2 hp Power, 1/2 hp at 120 VAC, 2 hp at 240 VAC Contact, 1 Pole, Cam Actuator, Wall Mounting, Side Wire/Screw Terminal, Thermoplastic, Clear, Environmental Conditions: -40 to 65 deg C Operating Temperature, 4.2 in H x 1.31 in W x 15 in D Dimensions

Application

Commercial Applications

Standards

CSA File No. LR3413 | NOM 057 Certified | UL File No. E7458

Features

  • Faster installation with combination of Side wiring and Quick wire Push-in wiring
  • Large head, hardened triple-drive combination screws (Standard, Phillips, or Robertson) for fast wiring installation
  • Impact-resistant, durable thermoplastic toggle and frame
  • Quick wire Push-in terminals accept #14 AWG solid copper wire only
  • Terminal screws accept up to #12 AWG copper or copper clad wire
  • AC quiet switch
  • Lighted handle - Illuminated
  • Steel strap
  • Wallplate mount
  • UL 94V-2 flammability rated

Specifications

Actuator:Cam
Amperage Rating:15 A
Color:Clear
Contact Rating:1/2 hp at 120 VAC, 2 hp at 240 VAC
Country of Origin:MX
Dimensions:4.2 in H x 1.31 in W x 15 in D
Environmental Conditions:-40 to 65 deg C Operating Temperature
Material:Thermoplastic
Mounting:Wall
Number of Poles:1
Power Rating:1/2 hp
Terminal Type:Side Wire/Screw
Voltage Rating:120 VAC
