1463-LHC LEV

Name: 1463-LHC LEV
Brand: Leviton Manufacturing
SKU: 1463-LHC LEV
Availability: OutOfStock

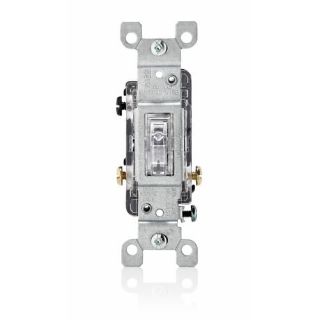

Leviton® 1463-LHC 3-Way AC Quiet Toggle Switch, 120 VAC, 15 A

Manufacturer: Leviton Manufacturing

Manufacturer part number: 1463-LHC

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Leviton®

Type

3-Way

Alternate Supplier #

Grainger - 25MM19

Description

Tried-and-true toggle designs, Leviton residential grade AC Quiet switches cover all the bases; they install easily and are available in standard and illuminated versions. Their toggles and frames are constructed from impact-resistant thermoplastic, and they feature large head, hardened triple-drive screws for easy installation. Leviton® traditional switches are compatible with a wide range of Leviton plastic and metal wallplates.

Leviton® AC Quiet Toggle Switch, 3-Way, 120 VAC, 15 A, 1/2 hp at 120 VAC, 2 hp at 240 VAC Contact, Cam Actuator, Surface Mounting, Side Wire Terminal, Thermoplastic, Clear, Environmental Conditions: -40 to 65 deg C Operating Temperature, 4.2 in H x 1.31 in W x 1.05 in D Dimensions

Application

Commercial Applications

Standards

CSA File No. LR3413 | NOM 057 | UL Listed File No. E7458 | UL 94V-2 Flammability Rating

Features

Faster installation with combination of side wiring and quick wire push-in wiring
Large head triple-drive combination screws (standard, phillips and robertson) for fast wiring installation
Impact-resistant, durable thermoplastic toggle and frame
Quick wire push-in terminals accept no 14 AWG solid copper wire only
Terminal screws accept up to no 12 AWG copper or copper clad wire

Specifications

Actuator:	Cam
Amperage Rating:	15 A
Color:	Clear
Contact Rating:	1/2 hp at 120 VAC, 2 hp at 240 VAC
Country of Origin:	MX
Dimensions:	4.2 in H x 1.31 in W x 1.05 in D
Environmental Conditions:	-40 to 65 deg C Operating Temperature
Material:	Thermoplastic
Mounting:	Surface
Power Rating:	1/2 hp
Terminal Type:	Side Wire
Voltage Rating:	120 VAC
