1492LD4RB102 AB

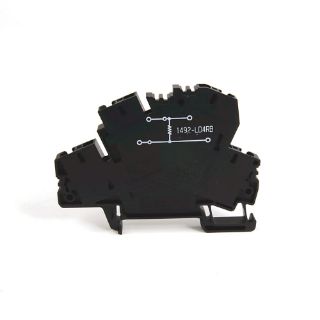

Picture of 1492LD4RB102 AB
Actual Product May Vary From Image

Product Details

Manufacturer:
Allen-Bradley
Manufacturer part number:
1492-LD4RB102
CBT Inventory
0
Vendor Inventory
Please login to see accurate availability
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$13.30 / EA
You do not meet the requirements to purchase this product. Please contact your sales person.

Description

Type

EC Spring Clamp ResistorTerminal Block

Description

Terminal Block, Spring Clamp Connection, Two Level with Selectable Resistor Value Between the Two Levels 1000 Ohm Resistance, 6.1 x 76 x 52.2mm (0.24 x 2.99 x 2.06 in), 1 Pole, Black, Pkg. Qty. of 1, VOLTAGE RATING UR 600V AC/DC, CSA 600V AC/DC, IE

Application

omponent Wattage Rating -0.25W

Standards

CCC, CE, CSA, CUL, UL

Features

pring Clamp Connection, TwoLevel with Selectable ResistorValue Between the Two Levels -1000 Ohm Resistance, 1 Pole,Black, Pkg. Qty. of 1

Specifications

Amperage Rating:R - 25A, CSA - 30A, IEC - 30A
Color:lack (Standard)
Country of Origin:MUL
Terminal Size:.1 x 76 x 52.2mm (0.24 x 2.99x 2.06 in)
Voltage Rating:R - 600V AC/DC, CSA - 600VAC/DC, IEC - 152V AC/DC
Wire Size:R - #26...10 AWG, CSA -#26...10 AWG, IEC - 4mm²

Resources

Spec Sheet
