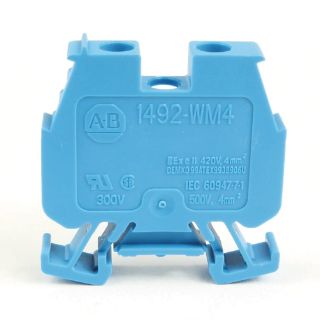

1492WM4 AB

IEC Term Blck 8x47.6x41mm Screw
Manufacturer: Allen-Bradley
Manufacturer part number: 1492-WM4
Estimated dates are contingent upon manufacturer stock.
Please login to see accurate availability
$4.07
You do not meet the requirements to purchase this product. Please contact your sales person.

Product Details

Brand Name

Allen-Bradley

Type

IEC Screw Mini Terminal Block

Description

Terminal Block, Screw Connection, Mini, Feed Through Single Circuit, 6 x 32 x 28 mm (0.24 x 1.26 x 1.10 in), 1 Pole, Gray, Pkg. Qty. of 50, VOLTAGE RATING UR 300V AC/DC, CSA 300V AC/DC, IEC 500V AC/DC, ATEX 420V AC/DC, MAXIMUM CURRENT RATING

Features

Screw Connection, Mini - Feed Through - Single Circuit, 1 Pole, Gray, Pkg. Qty. of 50

Specifications

Amperage Rating:20/32 A
Color:Gray
Country of Origin:CH
Sub Brand:1492
Terminal Size:6 x 32 x 28 mm (0.24 x 1.26 x 1.10 in)
Voltage Rating:300/420/500//300/420/500 VAC//VDC
Wire Size:UR - #22...12 AWG, CSA - #22...12 AWG, IEC - 0.5...4.0 mm², ATEX - 4.0 mm²
