14MGT-2730-20 GAT

Name: 14MGT-2730-20 GAT
Brand: Gates
SKU: 14MGT-2730-20 GAT
Price: 445.34 USD
Availability: OutOfStock

Poly Chain™ GT Carbon

Manufacturer: Gates

Manufacturer part number: 14MGT-2730-20

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$445.34

Qty:

Product Details

Brand Name

Gates

Alternate Supplier #

92744195

Description

Give yourself a competitive advantage by designing in the Gates Poly Chain® GT™ Carbon drive system instead of roller chain in your next power transmission application. The patented use of carbon fiber as the tensile cord in this belt provides increased horsepower rating for greater power density and compactness. When combined with Gates Poly Chain GT sprockets, you have a lightweight, long-lasting, maintenance-free system that's more than a match for roller chain.

Features

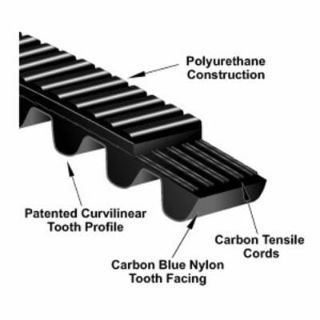

Durable polyurethane construction resists chemicals, oil, pollutants and abrasion. Robust carbon tensile cord combines minimal stretch with extraordinary strength and load carrying capacity. Gates curvilinear tooth profile provides high shear strength and improved load carrying capacity. Nylon tooth facing reduces friction and eliminates the need for lubrication. Equivalent capacity to roller chain drives in the same width that offer a maintenance-free, clean solution with no lubrication or retensioning required.

Specifications

Belt Back Side:	Ribbed
Belt Height (in):	0.394
Belt Height (mm):	10.2
Belt/Slab:	Belt
Color:	Blue
Cord Material:	Carbon
Country of Origin:	US
End:	Endless
Fabric Material:	Nylon
GC Base Product:	Poly Chain® GT® Carbon™ Belts - 14mm Pitch
Harmonized Tariff Code:	3926.90.5700
Length Pitch (in):	107.48
Length Pitch (mm):	2730
Material:	Polyurethane
Max Temp (°C):	+85
Max Temp (°F):	+185
Min Temp (°C):	-54
Min Temp (°F):	-65
Number of Teeth:	195
Pitch (in):	0.552
Pitch (mm):	14
Proposition 65:	NO
Section:	14M
Sided:	Single Sided
Sprock Comptab:	Poly Chain GT
Standard Width:	YES
Stat Conductive:	No
Tooth Form:	Curvilinear
Tooth Height (in):	0.236
Tooth Height (mm):	6
Width (in):	0.787
Width (mm):	20
