14MGT-4956EL-37 GAT

Poly Chain™ GT Carbon Extended Length
Manufacturer: Gates
Manufacturer part number: 14MGT-4956EL-37
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$2,234.68

Product Details

Brand Name

Gates

Alternate Supplier #

92682004

Description

A comprehensive range of open-ended belt constructions which can easily be cut to the required length. Long-length open-end synchronous belts are especially suited for linear movement, positioning and conveyor applications. Available in Poly Chain® GT™ Carbon™, PowerGrip™ GT2™, PowerGrip HTD™ and PowerGrip Timing constructions.

Features

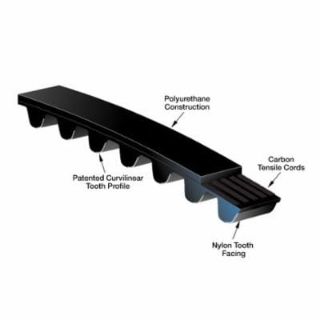

Durable polyurethane construction resists chemicals, oil, pollutants and abrasion. Robust carbon tensile cord combines minimal stretch with extraordinary strength and load carrying capacity. Nylon tooth facing reduces friction and eliminates the need for lubrication. High positioning accuracy, making the belt ideally suited for applications with repetitive movements; length stability due to the use of high modulus tensile members. Easy to attach with clamping fixtures; maintenance-free, clean solution for roller chain drive conversion; no lubrication or retensioning required.

Specifications

Belt Back Side:Smooth
Belt Height (in):0.394
Belt Height (mm):10.2
Belt/Slab:Belt
Color:Black
Cord Material:Carbon
Country of Origin:US
End:Open End
Fabric Material:Nylon
GC Base Product:Poly Chain® GT® Carbon™ Belts - 14mm Pitch
Harmonized Tariff Code:3926.90.5700
Length Pitch (in):195.12
Length Pitch (mm):4956
Material:Polyurethane
Max Temp (°C):+85
Max Temp (°F):+185
Min Temp (°C):-54
Min Temp (°F):-65
Number of Teeth:354
Pitch (in):0.552
Pitch (mm):14
Proposition 65:NO
Section:14M
Sided:Single Sided
Sprock Comptab:Poly Chain GT
Standard Width:YES
Stat Conductive:No
Tooth Form:Curvilinear
Tooth Height (in):0.236
Tooth Height (mm):6
Width (in):1.457
Width (mm):37
