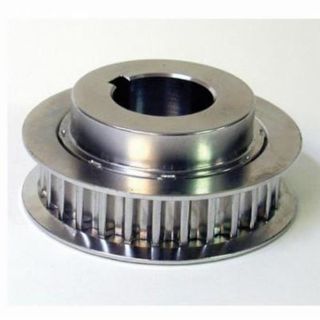

14MX-112S-20 GAT

14MX-112S-20 3525
Manufacturer: Gates Rubber
Manufacturer part number: 77192112
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
Show More Locations
$634.69 / EA

Product Details

Alternate Supplier #

14MX-112S-20

Application

Use with any Poly Chain belts.

Features

Full split in bushing allows easy installation and removal. Poly Chain GT2 Sprockets keep overhung load below manufacturers recommendation. Precise sprocket design produces positive, press fit to shaft. Smaller, narrower sprockets save shaft space, keep the load closer to bearing and extend life of reducer. Sprockets are precision manufactured and static balanced.

Note

Do NOT use these sprockets with rim speeds in excess of 6,500 fpm.

Specifications

Bore or Bushing:3525
Bore Range:1 3/16 - 3 15/16 in
Material:CI
Number of Grooves:112
Pitch Diameter:19.650 in
Warning:Do NOT use these sprockets with rim speeds in excess of 6,500 fpm.
