14MX-168S-68 GAT

Poly Chain™ GT™ Sprocket
Manufacturer: Gates
Manufacturer part number: 14MX-168S-68
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$2,696.66

Product Details

Brand Name

Gates

Alternate Supplier #

77196168

Description

Poly Chain GT sprockets use the tooth profile designed and developed by Gates and function with Gates Poly Chain GT belts in all existing constructions. These sprockets are statically balanced to make sure the entire belt drive is as safe as possible. Furthermore, they are manufactured, specified, and tested to perfectly support the full power capabilities of the Gates Poly Chain belt product range. Belts and sprockets used together get the best out of your belt drive: maximum performance, prolonged antistatic properties and optimal lifetime.

Features

WARNING: Do NOT use these sprockets with rim speeds in excess of 6,500 fpm. Smaller, narrower sprockets save shaft space, keep the load closer to bearing and extend life of reducer. Poly Chain® GT® Sprockets keep overhung load below manufacturers' recommendation. Precisely manufactured and statically balanced to ISO 1940 (1973) to class G16. Details shown which do not affect drive function or overall weight may be changed without notification. On a sprocket, pitch is the distance between groove centers and is measured on the pitch circle of the sprocket. The pitch circle of the sprocket coincides with the pitch line of the belt mating with it. The pitch diameter of the sprocket is always greater than its outside diameter. Sprocket part numbers are comprised of pitch, number of grooves and width. For example; part number 8MX-48S-12 denotes 8mm pitch, 48 grooves, "S" for sprocket and 12mm width. Sprockets with 90 or more grooves do not have flanges. Abbreviations used for sprocket materials: GI=Gray Iron, DI=Ductile Iron, SiS=Sintered Steel, ST=Steel, CI=Cast Iron.

Specifications

Belt Pitch (in):0.55
Belt Pitch (mm):14
Belt Width (in):2.68
Belt Width (mm):68
Bore Max (in):4.9375
Bore Max (mm):125.4
Bore Min (in):1.9375
Bore Min (mm):49.2
Bore/Bear/Bush#:4535
Bushing Style:Taper Lock™
Country of Origin:US
GC Base Product:Poly Chain GT Sprockets - 14mm Pitch Sprockets - For Belts 68mm Wide
Harmonized Tariff Code:8483.90.8080
Material:Cast Iron
Number of Groove/Teeth:168
Pitch Dia (in):29.475
Pitch Dia (mm):749
Proposition 65:NO
Rim Speed (fpm):6500
Rim Speed (mps):33.02
Stock:Made to Stock
Customers who bought this item also bought

14MGT-3500-68 GAT

MFG: Gates
MFG#:14MGT-3500-68
Info:Poly Chain™ GT Carbon

$ -.--

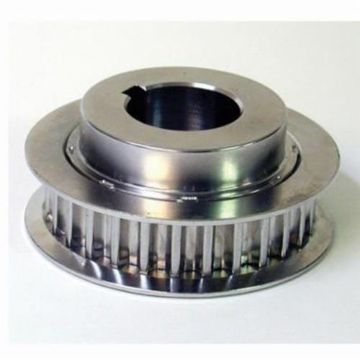

14MX-48S-68 GAT
