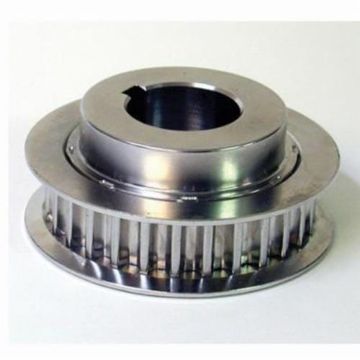

14MX-48S-68 GAT

Name: 14MX-48S-68 GAT
Brand: Gates Corporation
SKU: 14MX-48S-68 GAT
Price: 685.49 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Gates Corporation

Manufacturer part number:

14MX-48S-68

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$685.49 / EA

Description

Brand Name

Gates®

Description

Poly Chain GT sprockets use the tooth profile designed and developed by Gates and function with Gates Poly Chain GT belts in all existing constructions. These sprockets are statically balanced to make sure the entire belt drive is as safe as possible. Furthermore, they are manufactured, specified, and tested to perfectly support the full power capabilities of the Gates Poly Chain belt product range. Belts and sprockets used together get the best out of your belt drive: maximum performance, prolonged antistatic properties and optimal lifetime.

Gates® Poly Chain® GT®2 Synchronous Sprocket, Series: 7719, Taper-Lock® Bore, 1-3/16 to 3-15/16 in Bore Dia, 8.31 in Outside Dia, 8.421 in, 48 Grooves, 14 mm Pitch, 3.33 in Face Width, 8.94 in Flange Dia, 6.96 in Hub Dia, 3525 Bushing, For Use With: 68 mm W Poly Chain® Belt, Cast Iron

Features

Full split in bushing allows easy installation and removal
Poly Chain® GT®2 sprockets keep overhung load below manufacturers recommendation
Precise sprocket design produces positive, press fit to shaft
Sprockets are precision manufactured and static balanced
Smaller, narrower sprockets save shaft space, keep the load closer to bearing and extend life of reducer

Specifications

Bore Diameter:	1-3/16 to 3-15/16 in
Bore Type:	Taper-Lock®

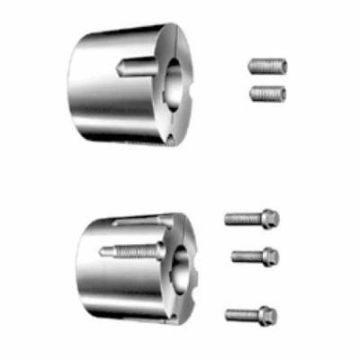

Bushing Type:	3525
Country of Origin:	US
Face Width:	3.33 in
Flange Diameter:	8.94 in
Hub Diameter:	6.96 in
Material:	Cast Iron
Number of Grooves:	48
Outside Diameter:	8.31 in
Pitch:	14 mm
Pitch Diameter:	8.421 in
Series:	7719
Suitable For Use With:	68 mm W Poly Chain® Belt

Customers who bought this item also bought

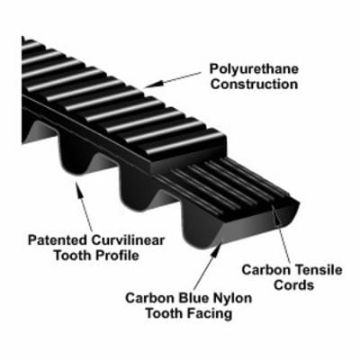

14MGT-3500-68 GAT
