14NBK2034YZP RBC

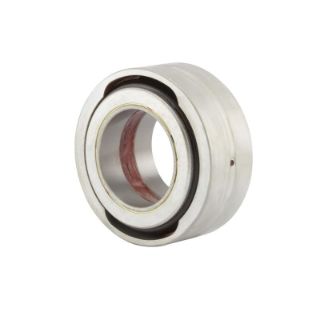

RBC® 14NBK2034YZP NBK Self-Aligning Airframe Bearing, Needle Roller Bearing, 7/8 in Dia Bore, 2-1/8 in OD, 1-1/4 in W, 25800 lb Load
Manufacturer part number: 14NBK2034YZP
Availability: Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$2,357.20

Product Details

Brand Name

RBC®

Description

RBC® Self-Aligning Airframe Bearing, Series: NBK, Needle Roller Bearing, 7/8 in Bore Dia, 2 Rows, 2-1/8 in Outside Dia, 1-1/4 in W, 25800 lb, 52100 Steel Bearing, 0 to 250 deg F, Cadmium

Application

For use in industrial applications that necessitate the most stringent tolerances

Standards

ABMA | ASPR | CAS | DFAR | FAR Standards | NASC | SAE AS24464 | US Military Specification AS39901

Features

  • Airframe needle roller bearing designed to withstand heavy static loads or moderate loads under oscillation or slow rotation
  • Must be mounted in supporting housing
  • Will tolerate +/- 5 deg of misalignment, but not under heavy loads
  • This bearing is not intended for use in any aerospace application
  • Lubrication groove (recessed) in bore and hole in inner race
  • Lubrication groove (recessed) in OD and hole in outer race
  • Exposed surfaces, as mounted, cadmium plated
  • 25800 lb dynamic/25800 lb static

Includes

Two Rows Needle Rollers and (2) Retaining Washers

Specifications

Bearing Material:52100 Steel
Bearing Type:Needle Roller
Bore Diameter:7/8 in
Country of Origin:US
Finish:Cadmium
Load Capacity:25800 lb
Number of Rows:2
Outside Diameter:2-1/8 in
Series:NBK
Temperature Rating:0 to 250 deg F
Width:1-1/4 in
