Actual Product May Vary From Image

14RBD-18277 TB

Name: 14RBD-18277 TB
Brand: Thomas & Betts
SKU: 14RBD-18277 TB
Price: 2.04 USD
Availability: OutOfStock

FULLY INS NYL FEM-187 DISC, 16-14 L

Manufacturer: Thomas & Betts

Manufacturer part number: 14RBD-18277

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$2.04

Qty:

Product Details

Brand Name

Sta-Kon

Type

Disconnects

Description

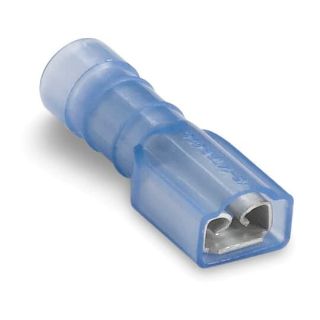

Fully Insulated Nylon Female - 187 Series Disconnects For Wire Range 16-14 Length 0.89, Tab Size .187 x .020 , Blue

Features

Quick, reliable method of connection to terminal blocks and boards without the use of tools. Unique construction of the female disconnect offers long-term dependability.

Specifications

Color:	Blue
Country of Origin:	US
Disconnect Type:	Female - 187 Series
Finish:	Electro -Tin Plated
Flammability Rating:	UL 94 V-2
Insulation:	Fully Insulated Nylon
Material:	Brass
Maximum Insulation:	.170 IN
Stock Thickness:	.03
Tab Size:	.187 x .020
Temperature Rating:	105?C
Voltage Rating:	600V
Wire Size:	16-14

Resources

Spec Sheet
