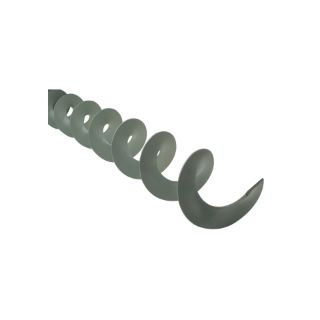

Martin 14SF512-R Sectional Flighting Conveyor Screw, 14 in Dia x 14 in L, 14 in Pitch, Steel
Manufacturer: Martin Sprocket & Gear
Manufacturer part number: 14SF512-R
Availability: Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$99.03

Product Details

Brand Name

Martin

Type

Sectional Flighting

Description

Sectional flights are individual flights or turns blanked from steel plates and formed into a spiral or helix of the desired diameter and pitch to t conveyor screw pipes. The flights are butt welded together to form a continuous conveyor screw. Modications can be furnished, such as fabrication from various metals, different flight thicknesses, other diameters and pitches. The butt weld flight is the same thickness in the full cross section. Stock sectional flight screw diameter from 6 in to 24 in and thickness from 3/16 in to 1/2 in. Right hand flight helix wraps around the pipe in a clockwise direction.
Martin Conveyor Screw, Sectional Flighting, 14 in Dia, 14 in Length, Steel, 14 in Pitch, Right Hand Flight Type

Standards

CEMA Standard

Features

  • Can be manufactured from a wide range of materials
  • Pitch can be varied on a MTO basis

Specifications

Country of Origin:US
Diameter:14 in
Flight Type:Right Hand
Length:14 in
Material:Steel
Pitch:14 in
