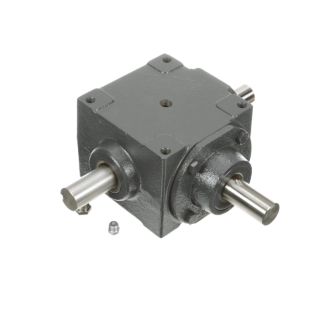

Actual Product May Vary From Image

150 2/1 A,B ST HUB

Name: 150 2/1 A,B ST HUB
SKU: 150 2/1 A,B ST HUB
Price: 1,332.60 USD
Availability: OutOfStock

Hub City® 0220-00818 150 Right Angle Straight Single Reduction Style A B Bevel Gear Reducer, Shaft Input, Shaft Output, 6-1/4 hp, 2:1 Gear, 875 rpm Maximum Output, 442 in-lb Torque Rating

Manufacturer part number: 0220-00818

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$1,332.60

Qty:

Product Details

Brand Name

Hub City®

Type

Right Angle Straight Single Reduction Style A B

Description

Regal Beloit offers a wide array of enclosed spiral or straight bevel gearing solutions with universal mounting for right angle transmission.

Hub City® Bevel Gear Reducer, Right Angle Straight Single Reduction Style A B, Series: 150, 2:1 Gear Ratio, 6-1/4 hp, Shaft Input, Shaft Output, 1 in Dia x 2 in L Input, 1 in Dia Output, 875 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 442 in-lb, 5-23/32 in Centre Distance, 1/4 x 1/8 in Input Keyway, 97.5 % Efficiency, Conventional Oil Lubrication, Four-Bolt Surface Mount, Cast Iron, 10-3/16 in W x 8-9/32 in D x 4-1/8 in H

Application

Agriculture, Aerospace, Construction, Food Processing, Medical, Material Handling, Packaging, Recreation and Transportation

Standards

AGMA Class 1

Features

Rugged cast iron housing
Universal mounting dimensions
Alloy shafting
Heavy duty industrial seals

Specifications

Centre Distance:	5-23/32 in
Country of Origin:	US
Dimensions:	10-3/16 in W x 8-9/32 in D x 4-1/8 in H
Efficiency:	97.5 %
Gear Ratio:	2:1
Horsepower:	6-1/4 hp
Input Maximum Speed:	1750 rpm
Input Size:	1 in Dia x 2 in L
Input Type:	Shaft
Keyway Size:	1/4 x 1/8 in Input
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Mounting Type:	Four-Bolt Surface
Output Maximum Speed:	875 rpm
Output Size:	1 in Dia
Output Type:	Shaft
Series:	150
Torque Rating:	442 in-lb
